TPS7A1130PDRVT

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 3V 500MA 6WSON

Datasheet:

TPS7A1130PDRVT Datasheet

$1.43

Available to order

Reference Price (USD)

$1.43000

500+

$1.4157

1000+

$1.4014

1500+

$1.3871

2000+

$1.3728

2500+

$1.3585

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the TPS7A1130PDRVT linear voltage regulator IC by Texas Instruments, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this TPS7A1130PDRVT model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 3.3V
Voltage - Output (Min/Fixed): 3V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.14V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 2.6 µA
Current - Supply (Max): 11 µA
PSRR: 64dB ~ 35dB (1kHz ~ 1.5MHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount

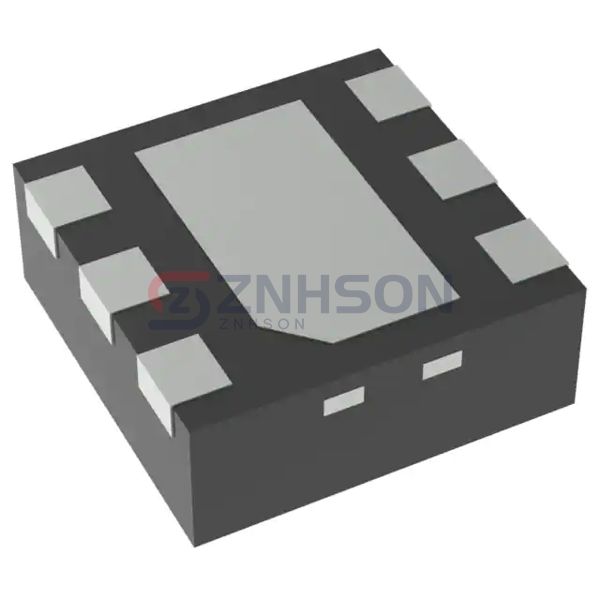

Package / Case: 6-WDFN Exposed Pad
Supplier Device Package: 6-WSON (2x2)
