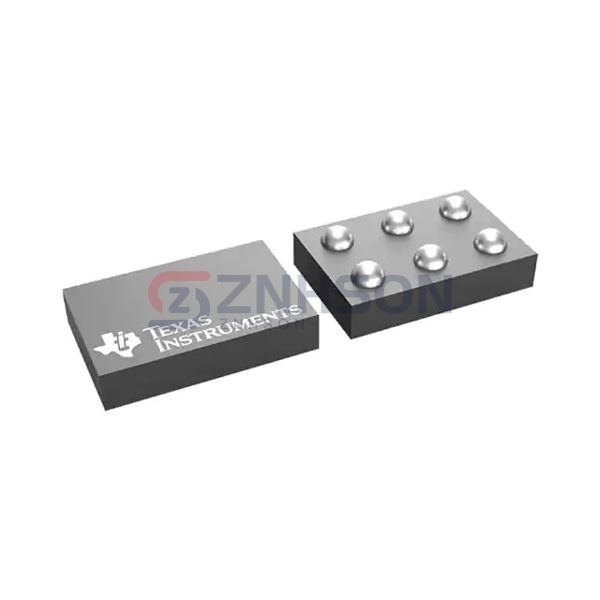

TPS7A1508PYCKR

Texas Instruments

Manufacturer

Texas Instruments

Description:

400-MA, LOW INPUT AND OUTPUT VOL

Datasheet:

TPS7A1508PYCKR Datasheet

$0.87

Available to order

Reference Price (USD)

$0.87000

500+

$0.8613

1000+

$0.8526

1500+

$0.8439

2000+

$0.8352

2500+

$0.8265

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Texas Instruments's TPS7A1508PYCKR represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the TPS7A1508PYCKR are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 2.2V
Voltage - Output (Min/Fixed): 0.8V
Voltage - Output (Max): -
Voltage Dropout (Max): -
Current - Output: 400mA
Current - Quiescent (Iq): 40 µA
Current - Supply (Max): 500 µA
PSRR: 90dB ~ 23dB (100Hz ~ 1MHz)
Control Features: Current Limit, Enable
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 6-XFBGA, DSBGA
Supplier Device Package: 6-DSBGA (0.71x1)
