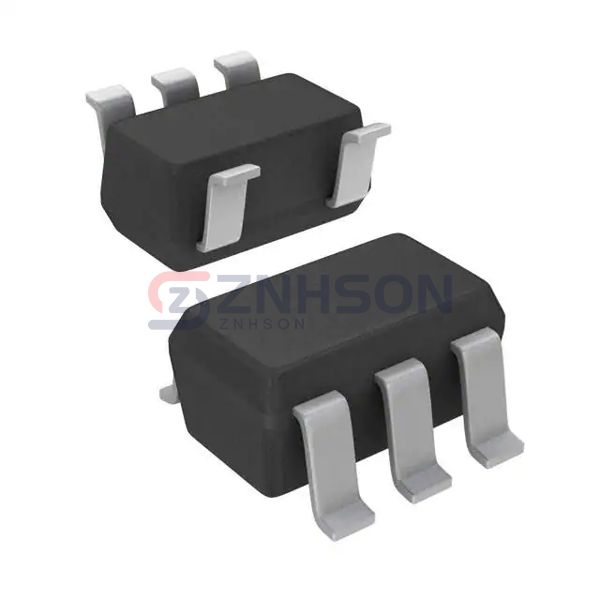

TPS7A2009PDBVR

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC POWER

Datasheet:

TPS7A2009PDBVR Datasheet

$0.17

Available to order

Reference Price (USD)

$0.17251

500+

$0.1707849

1000+

$0.1690598

1500+

$0.1673347

2000+

$0.1656096

2500+

$0.1638845

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the TPS7A2009PDBVR, a premium PMIC - Voltage Regulators - Linear IC from Texas Instruments, engineered to provide exceptional voltage regulation with minimal power loss. This IC is part of the esteemed PMIC - Voltage Regulators - Linear category, known for its ability to maintain stable voltage levels under varying load conditions. The TPS7A2009PDBVR excels with its low quiescent current, high efficiency, and superior thermal management, ensuring optimal performance in demanding environments. Linear voltage regulators like the TPS7A2009PDBVR are pivotal in applications requiring precise voltage control without the complexity of switching regulators. The TPS7A2009PDBVR offers outstanding line and load regulation, making it a preferred choice for sensitive electronic circuits. Its advanced protection features, including over-current and over-temperature safeguards, further enhance its reliability. The TPS7A2009PDBVR finds applications across multiple sectors, including medical devices, industrial automation, and consumer electronics. For example, it is used in wearable health monitors, factory automation systems, and smart home devices. Its ability to deliver clean and stable power makes it indispensable for modern electronic designs, ensuring both performance and safety.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 0.9V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.69V @ 300mA
Current - Output: 300mA
Current - Quiescent (Iq): 15 µA
Current - Supply (Max): -
PSRR: 65dB ~ 40dB (100Hz ~ 1MHz)
Control Features: Enable, Soft Start
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: SC-74A, SOT-753
Supplier Device Package: SOT-23-5
