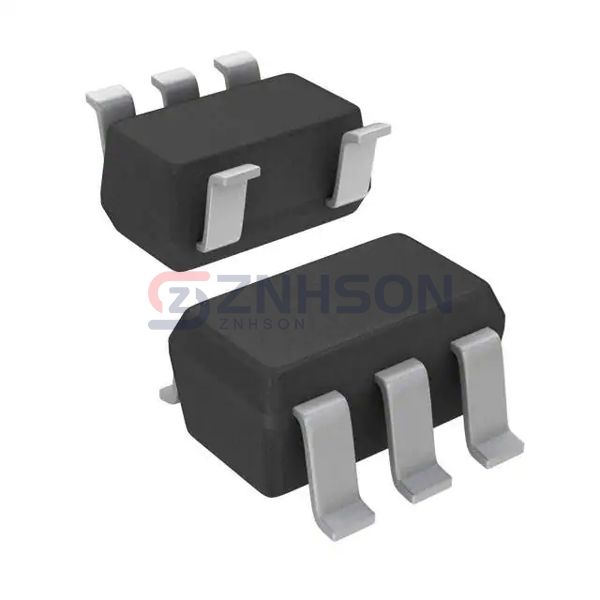

TPS7A2401DBVR

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LIN POS ADJ 200MA SOT23-5

Datasheet:

TPS7A2401DBVR Datasheet

$0.63

Available to order

Reference Price (USD)

$0.63000

500+

$0.6237

1000+

$0.6174

1500+

$0.6111

2000+

$0.6048

2500+

$0.5985

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TPS7A2401DBVR from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): 18V
Voltage - Output (Min/Fixed): 1.24V
Voltage - Output (Max): 17.75V
Voltage Dropout (Max): 0.25V @ 200mA
Current - Output: 200mA
Current - Quiescent (Iq): 4.5 µA
Current - Supply (Max): -
PSRR: 75dB ~ 62dB (10Hz ~ 1kHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: SC-74A, SOT-753
Supplier Device Package: SOT-23-5
