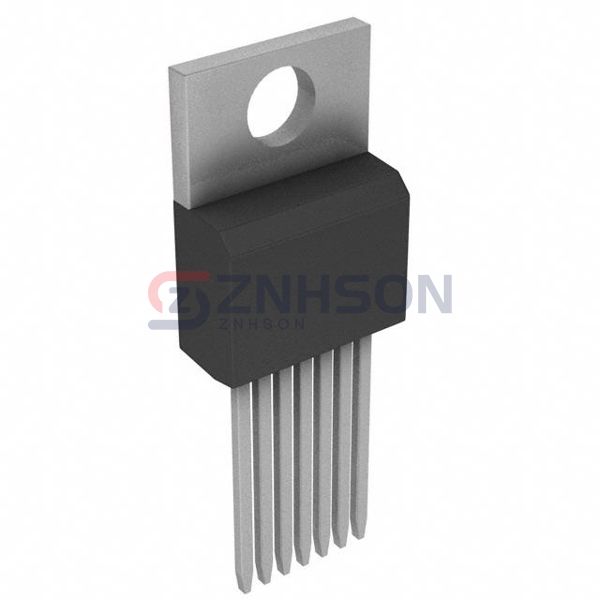

TPS7A3301KC
Texas Instruments
Texas Instruments
IC REG LIN NEG ADJ 1A TO220-7
$4.34
Available to order
Reference Price (USD)
1+
$7.23000
10+
$6.52700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPS7A3301KC from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Obsolete
- Output Configuration: Negative
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): -36V
- Voltage - Output (Min/Fixed): -1.18V
- Voltage - Output (Max): -33V
- Voltage Dropout (Max): 0.8V @ 1A
- Current - Output: 1A
- Current - Quiescent (Iq): 100 µA
- Current - Supply (Max): 950 µA
- PSRR: 72dB (10kHz)
- Control Features: Enable, Soft Start
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-220-7
- Supplier Device Package: TO-220-7
