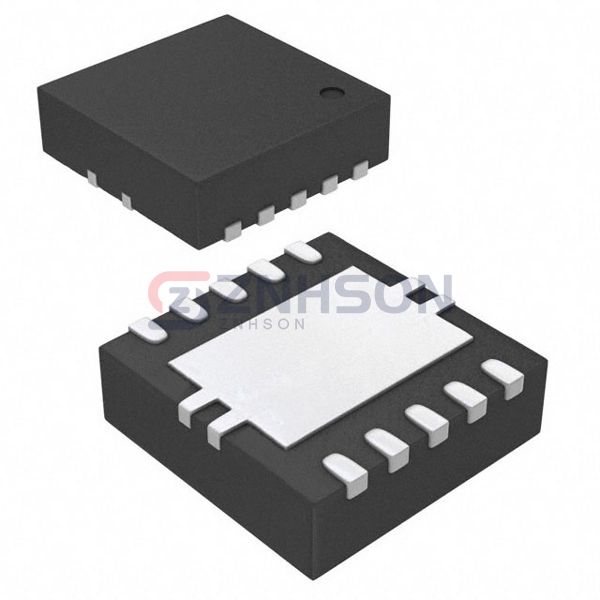

TPS7A3901DSCR
Texas Instruments
Texas Instruments
IC REG LINEAR POS/NEG ADJ 10WSON
$4.24
Available to order
Reference Price (USD)
3,000+
$2.57488
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPS7A3901DSCR by Texas Instruments is a high-efficiency PMIC - Voltage Regulators - Linear IC designed to meet the needs of today's advanced electronic systems. This IC offers superior voltage regulation with features like fast transient response, low noise, and high accuracy. Its robust construction ensures long-term reliability, making it a perfect fit for both commercial and industrial applications.
In the PMIC - Voltage Regulators - Linear category, the TPS7A3901DSCR stands out for its ability to handle varying load conditions without compromising performance. It provides excellent line regulation and low quiescent current, which are essential for energy-efficient designs. Additionally, its built-in protection mechanisms safeguard against over-voltage and short-circuit conditions.
The TPS7A3901DSCR is employed in diverse fields, including medical imaging, consumer electronics, and military equipment. For instance, it is used in MRI machines, high-end audio systems, and defense communication devices. Its versatility and dependable performance make it a cornerstone in modern electronic engineering.
Specifications
- Product Status: Active
- Output Configuration: Positive and Negative
- Output Type: Adjustable
- Number of Regulators: 2
- Voltage - Input (Max): ±33V
- Voltage - Output (Min/Fixed): 1.2V, 0V
- Voltage - Output (Max): 30V, -30V
- Voltage Dropout (Max): 0.5V @ 150mA
- Current - Output: 150mA
- Current - Quiescent (Iq): 150 µA
- Current - Supply (Max): 904 µA
- PSRR: 69dB (120Hz)
- Control Features: Current Limit, Enable, Soft Start
- Protection Features: Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-WFDFN Exposed Pad
- Supplier Device Package: 10-WSON (3x3)
