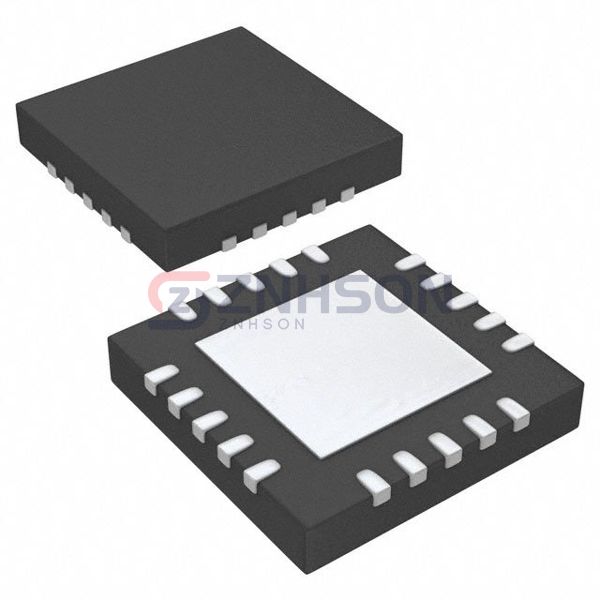

TPS7A8801RTJR

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR POS ADJ 1A 20QFN

Datasheet:

TPS7A8801RTJR Datasheet

$3.91

Available to order

Reference Price (USD)

3,000+

$2.10672

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TPS7A8801RTJR from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 2
Voltage - Input (Max): 6.5V
Voltage - Output (Min/Fixed): 0.8V
Voltage - Output (Max): 5V
Voltage Dropout (Max): 0.2V @ 1A
Current - Output: 1A
Current - Quiescent (Iq): 3.5 mA
Current - Supply (Max): 4 mA
PSRR: 40dB (500kHz)
Control Features: Enable, Power Good, Soft Start
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 20-WFQFN Exposed Pad
Supplier Device Package: 20-QFN (4x4)
