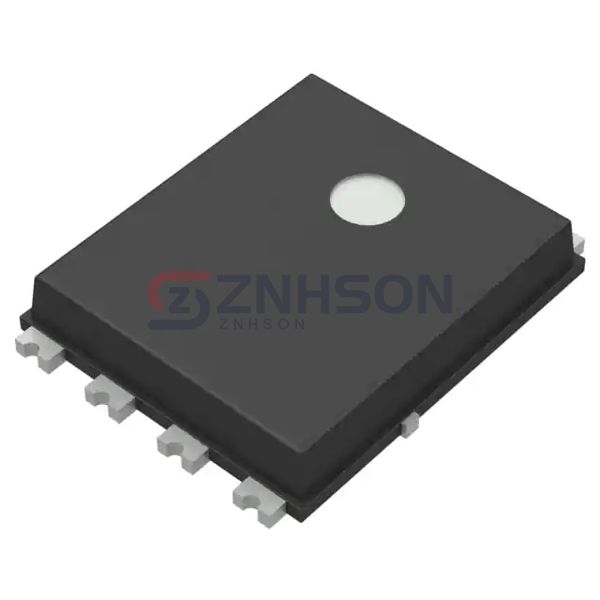

TQM025NB04CR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CH 40V 24A/157A 8PDFNU
$6.38
Available to order
Reference Price (USD)
1+
$6.38000
500+
$6.3162
1000+
$6.2524
1500+
$6.1886
2000+
$6.1248
2500+
$6.061
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TQM025NB04CR RLG single MOSFET from Taiwan Semiconductor Corporation is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the TQM025NB04CR RLG is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 157A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 7V, 10V
- Rds On (Max) @ Id, Vgs: 2.5mOhm @ 24A, 10V
- Vgs(th) (Max) @ Id: 3.8V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 118 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6670 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta), 136W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: 8-PDFNU (5x6)
- Package / Case: 8-PowerTDFN
