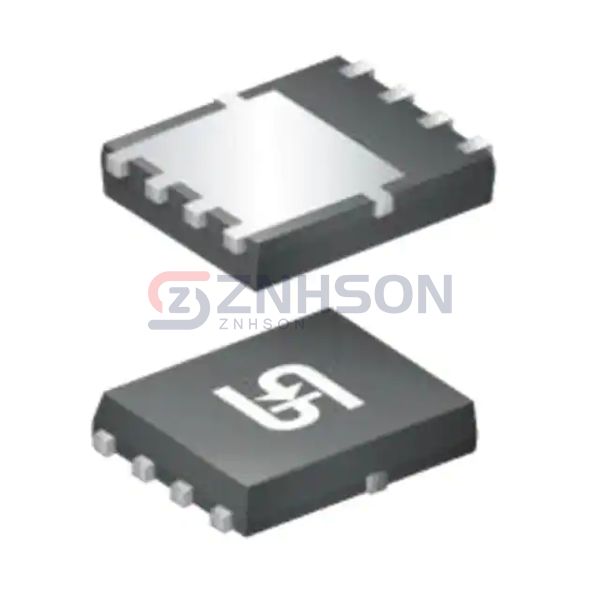

TQM150NB04CR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CH 40V 10A/41A PDFN56U
$1.11
Available to order
Reference Price (USD)
1+
$1.10760
500+
$1.096524
1000+
$1.085448
1500+
$1.074372
2000+
$1.063296
2500+
$1.05222
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the TQM150NB04CR RLG single MOSFET from Taiwan Semiconductor Corporation. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Taiwan Semiconductor Corporation's TQM150NB04CR RLG for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 10A (Ta), 41A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 7V, 10V
- Rds On (Max) @ Id, Vgs: 15mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 3.8V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1044 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta), 56W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: 8-PDFNU (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Rectron USA
2N7002KA
Sanken
DKI04103
onsemi
CPH3360-TL-H
Linear Integrated Systems, Inc.
SD213DE TO-72 4L
NXP USA Inc.
BUK7C06-40AITE,118
onsemi
NVD3055L170T4G-VF01
Sanyo
NDF02N60ZG
Fairchild Semiconductor

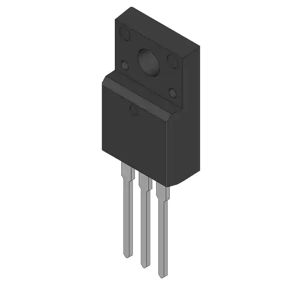

FDPF44N25TRDTU
