TS-108-G-AA
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 8POS 2.54MM
$3.12
Available to order
Reference Price (USD)
1+
$1.67000
28+
$1.42607
112+
$1.30196
504+
$1.08500
1,008+
$0.93000
5,012+
$0.82460
10,024+
$0.80600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

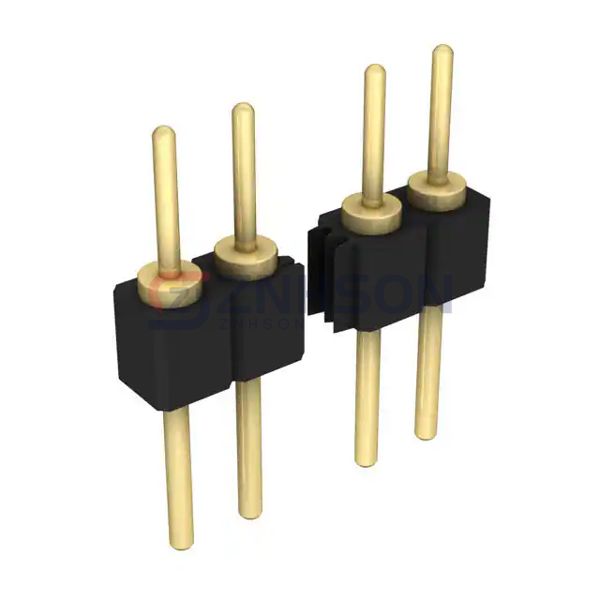

Discover the TS-108-G-AA rectangular connector header from Samtec Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the TS-108-G-AA adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Samtec Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.166" (4.22mm)
- Contact Length - Post: 0.156" (3.96mm)
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
