TS-120-G-A-2
Samtec Inc.
Samtec Inc.
.100" SINGLE ROW SCREW MACHINE T
$9.52
Available to order
Reference Price (USD)
1+
$9.52000
500+
$9.4248
1000+
$9.3296
1500+
$9.2344
2000+
$9.1392
2500+
$9.044
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TS-120-G-A-2 by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the TS-120-G-A-2 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.166" (4.22mm)
- Contact Length - Post: 0.210" (5.33mm)
- Overall Contact Length: 0.531" (13.50mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
5055780771
Sullins Connector Solutions
PEC16SGBN
Samtec Inc.
TSW-142-17-L-D
Samtec Inc.
TSM-116-02-L-DV-LC
Samtec Inc.
TSM-114-01-T-DH
3M
929834-03-17
Samtec Inc.
FTS-125-01-FM-DV
Samtec Inc.
TSM-109-03-L-DV-A-P

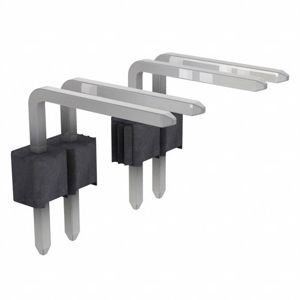

3M
