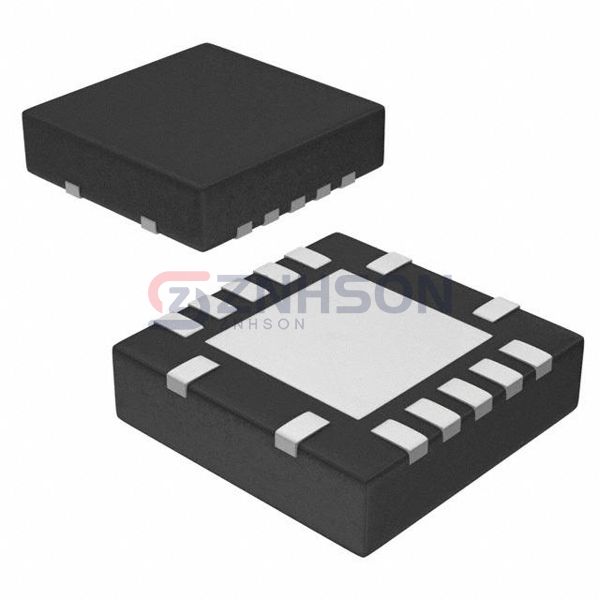

TS3A4751RGYR
Texas Instruments
Texas Instruments
IC SWITCH QUAD SPST 14QFN
$1.84
Available to order
Reference Price (USD)
3,000+
$0.50260
6,000+
$0.47747
15,000+
$0.45952
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's TS3A4751RGYR sets new benchmarks for analog switch ICs with its patented low-voltage operation down to 1.8V while handling analog signals up to 36V peak. This bidirectional multiplexer/demultiplexer from our premium Interface line offers break-before-make switching action with <20ns transition time. Medical ultrasound systems leverage its precision timing characteristics, while IoT edge devices benefit from its 0.1 A leakage current. The TS3A4751RGYR is the preferred choice for: laboratory automation equipment, phased-array radar systems, smart grid sensors, and high-speed data loggers. Its lead-free/GREEN compliance meets global environmental standards.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 900mOhm
- Channel-to-Channel Matching (ΔRon): 30mOhm
- Voltage - Supply, Single (V+): 1.6V ~ 3.6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 14ns, 9ns
- -3db Bandwidth: 125MHz
- Charge Injection: 3pC
- Channel Capacitance (CS(off), CD(off)): 23pF, 20pF
- Current - Leakage (IS(off)) (Max): 2nA
- Crosstalk: -95dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 14-VFQFN Exposed Pad
- Supplier Device Package: 14-VQFN (3.5x3.5)
