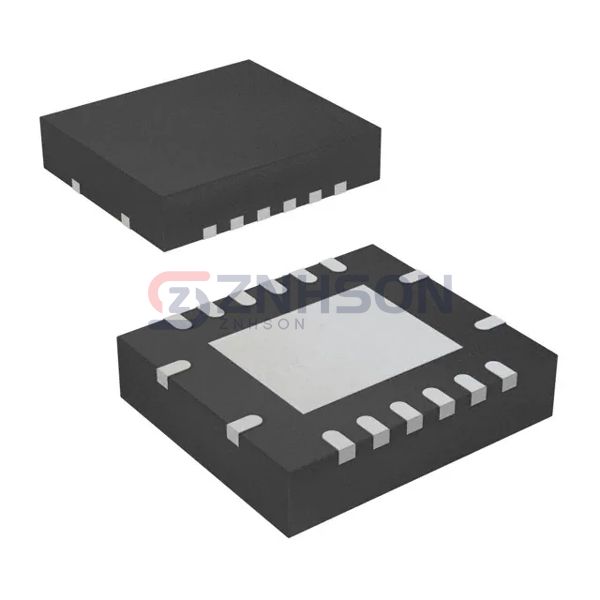

TS3A5017RGYR
Texas Instruments
Texas Instruments
IC SWITCH QUAD SP4T 16VQFN
$0.37
Available to order
Reference Price (USD)
3,000+
$0.38220
6,000+
$0.36309
15,000+
$0.34944
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TS3A5017RGYR by Texas Instruments represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The TS3A5017RGYR is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 12Ohm
- Channel-to-Channel Matching (ΔRon): 1Ohm
- Voltage - Supply, Single (V+): 2.3V ~ 3.6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 9.5ns, 3.5ns
- -3db Bandwidth: 165MHz
- Charge Injection: 5pC
- Channel Capacitance (CS(off), CD(off)): 4.5pF, 19pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -49dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-VFQFN Exposed Pad
- Supplier Device Package: 16-VQFN (4x3.5)
