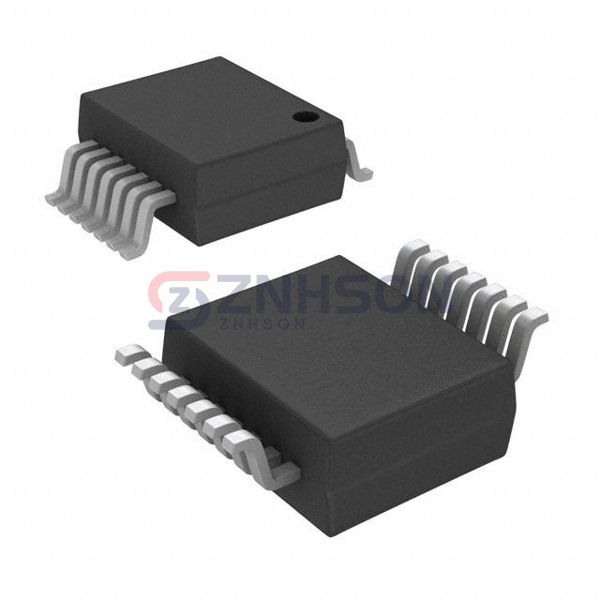

TS3A5018DGVR
Texas Instruments
Texas Instruments
IC SWITCH QUAD SPDT 16TVSOP
$0.34
Available to order
Reference Price (USD)
2,000+
$0.30595
6,000+
$0.28485
10,000+
$0.27430
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's TS3A5018DGVR redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The TS3A5018DGVR is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 10Ohm
- Channel-to-Channel Matching (ΔRon): 300mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 3.6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 8ns, 6.5ns
- -3db Bandwidth: 300MHz
- Charge Injection: 2pC
- Channel Capacitance (CS(off), CD(off)): 4.5pF, 9pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -48dB @ 10MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-TFSOP (0.173", 4.40mm Width)
- Supplier Device Package: 16-TVSOP
