TS5A12301EYFPR
Texas Instruments
Texas Instruments

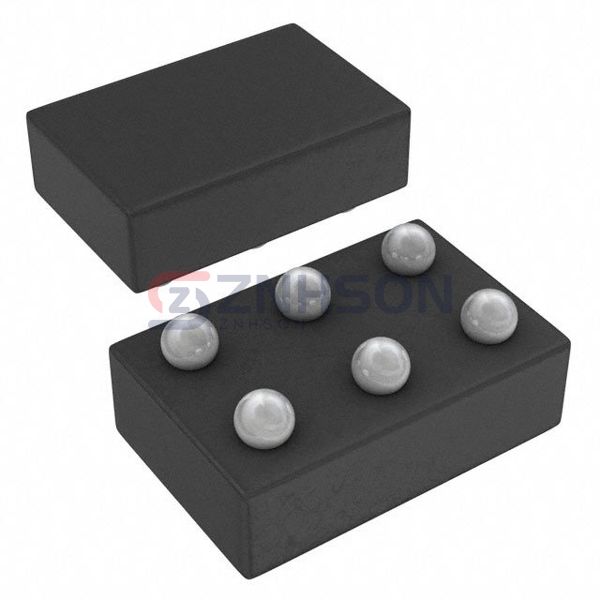

IC SWITCH SPDT 6DSBGA
$0.95
Available to order
Reference Price (USD)
3,000+
$0.36000
6,000+
$0.33600
15,000+
$0.32400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Texas Instruments's TS5A12301EYFPR, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The TS5A12301EYFPR meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 1
- On-State Resistance (Max): 750mOhm
- Channel-to-Channel Matching (ΔRon): 50mOhm
- Voltage - Supply, Single (V+): 2.25V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 225ns, 215ns
- -3db Bandwidth: 55MHz
- Charge Injection: 97pC
- Channel Capacitance (CS(off), CD(off)): 28pF
- Current - Leakage (IS(off)) (Max): 20nA
- Crosstalk: -63dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 6-XFBGA, DSBGA
- Supplier Device Package: 6-DSBGA
