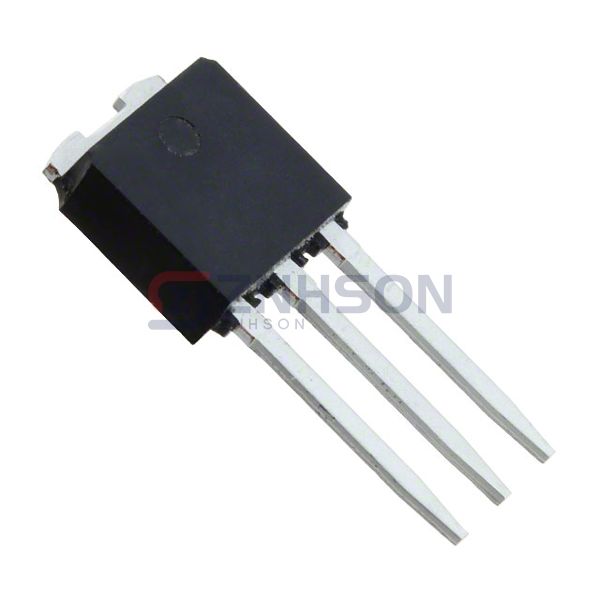

TS820-600H
STMicroelectronics
STMicroelectronics
SCR 600V 8A IPAK
$1.09
Available to order
Reference Price (USD)
3,000+
$0.76545
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the TS820-600H Thyristor - SCR from STMicroelectronics, a game-changer in the Discrete Semiconductor Products sector. Boasting ultra-fast switching and high surge current tolerance, this SCR is built for modern electronics. It's particularly effective in pulse generators, crowbar circuits, and power factor correction devices. Real-world implementations include medical imaging equipment and railway traction systems. STMicroelectronics's innovative design makes the TS820-600H a trusted component worldwide.
Specifications
- Product Status: Active
- Voltage - Off State: 600 V
- Voltage - Gate Trigger (Vgt) (Max): 800 mV
- Current - Gate Trigger (Igt) (Max): 200 µA
- Voltage - On State (Vtm) (Max): 1.6 V
- Current - On State (It (AV)) (Max): 5 A
- Current - On State (It (RMS)) (Max): 8 A
- Current - Hold (Ih) (Max): 5 mA
- Current - Off State (Max): 5 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 70A, 73A
- SCR Type: Sensitive Gate
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
- Supplier Device Package: I-PAK
