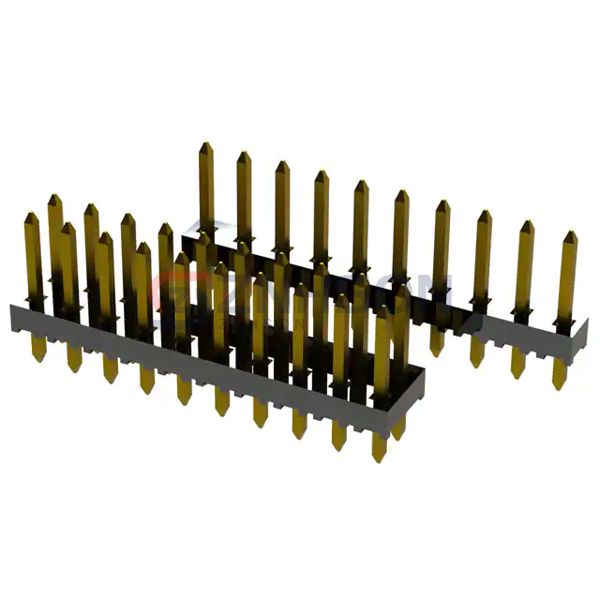

TSHC-123-D-03-145-GT-LF
Major League Electronics
Major League Electronics
.100 Header
$1.35
Available to order
Reference Price (USD)
1+
$1.35000
500+
$1.3365
1000+
$1.323
1500+
$1.3095
2000+
$1.296
2500+
$1.2825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the TSHC-123-D-03-145-GT-LF rectangular connector header from Major League Electronics. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the TSHC-123-D-03-145-GT-LF meets the highest industry standards. Major League Electronics provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 46
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.145" (3.68mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.335" (8.51mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0099990993
TE Connectivity AMP Connectors
3-292207-1
Preci-Dip
450-10-230-00-013101
Amphenol ICC (FCI)
10129382-906001BLF
Samtec Inc.
MTLW-104-06-G-S-120
Mill-Max Manufacturing Corp.
850-90-040-30-002000
Samtec Inc.
TMM-112-06-T-D-SM
Molex

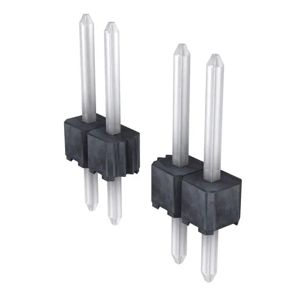

0901200140
Molex

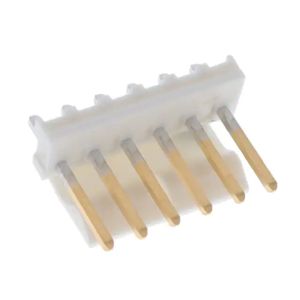

0417910836
