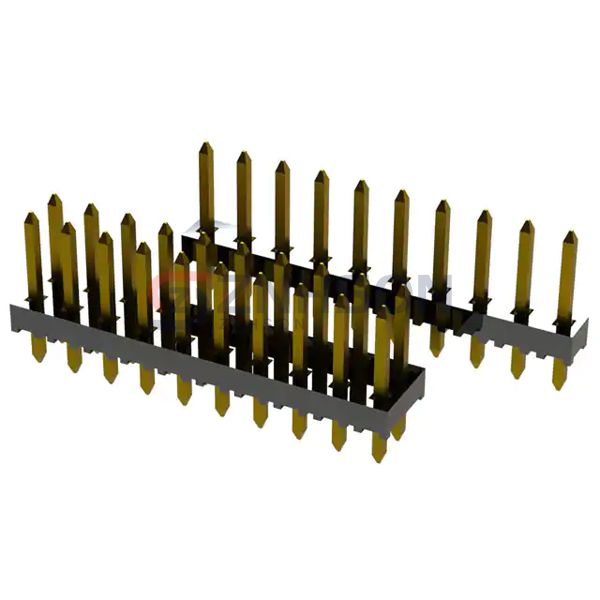

TSHC-140-T-11-225-GT-LF

Major League Electronics

Manufacturer

Major League Electronics

Description:

.100 Header

Datasheet:

TSHC-140-T-11-225-GT-LF Datasheet

$3.97

Available to order

Reference Price (USD)

$3.97000

500+

$3.9303

1000+

$3.8906

1500+

$3.8509

2000+

$3.8112

2500+

$3.7715

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the TSHC-140-T-11-225-GT-LF rectangular connector header from Major League Electronics, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the TSHC-140-T-11-225-GT-LF adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Major League Electronics guarantees connectors that enhance your product's reliability and efficiency.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 120
Number of Rows: 3
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.225" (5.72mm)
Contact Length - Post: 0.155" (3.94mm)
Overall Contact Length: 0.480" (12.19mm)
Insulation Height: 0.100" (2.54mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Polyamide (PA6T), Nylon 6T
Features: -
Operating Temperature: -40°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: -
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: -

Shopping cart

TSHC-140-T-11-225-GT-LF

Reference Price (USD)

Specifications

Related Products

850-10-044-40-251101

451-80-270-00-004101

292207-4

929834-05-35

78511-407HLF

TMM-105-01-S-D-SM-A-TR

0015911340

0022053221

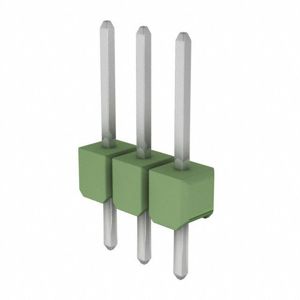

828214-3

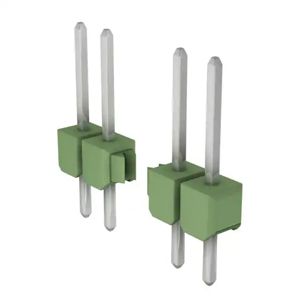

826926-9
