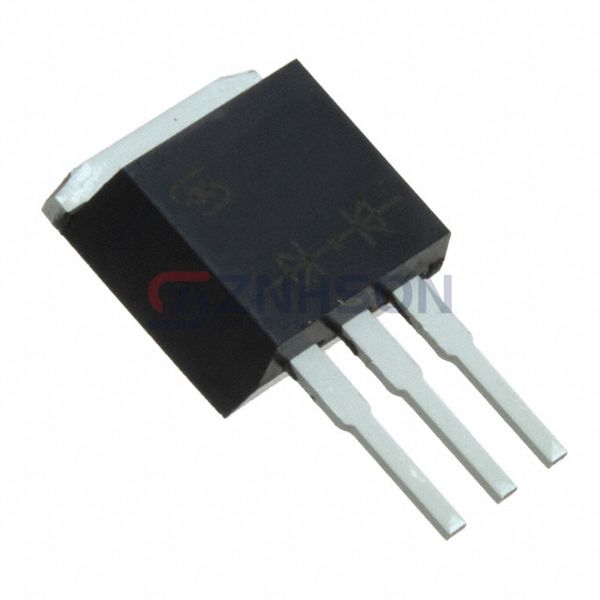

TSI20H120CW
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ARRAY SCHOTTKY 120V I2PAK
$2.71
Available to order
Reference Price (USD)
1+
$2.71000
500+
$2.6829
1000+
$2.6558
1500+
$2.6287
2000+
$2.6016
2500+
$2.5745
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the TSI20H120CW - Taiwan Semiconductor Corporation's advanced solution in the Diodes - Rectifiers - Arrays segment. This high-speed rectifier array boasts ultra-low recovery time, significantly reducing power loss in switching applications. From server power supplies to LED lighting drivers and electric vehicle charging stations, this component ensures energy-efficient operation. Taiwan Semiconductor Corporation combines innovative silicon technology with rigorous testing to deliver diode arrays that outperform in reliability and thermal management.
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io) (per Diode): 10A
- Voltage - Forward (Vf) (Max) @ If: 620 mV @ 10 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 200 µA @ 120 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-262-3 Long Leads, I²Pak, TO-262AA
- Supplier Device Package: I2PAK
