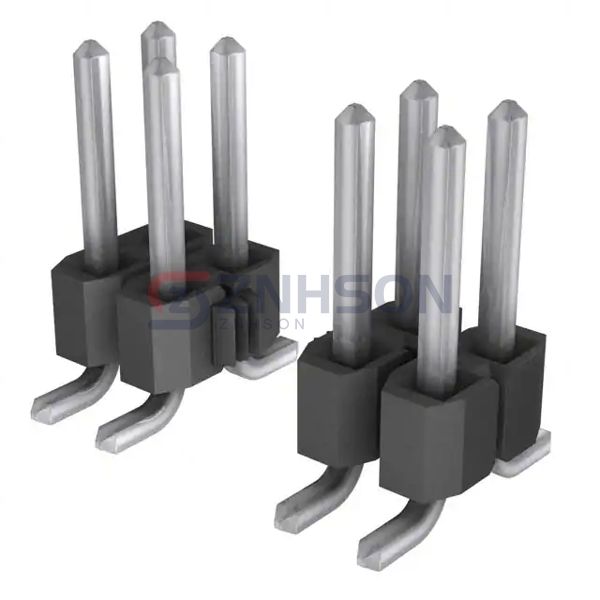

TSM-105-01-T-DV-P
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 10POS 2.54MM
$1.81
Available to order
Reference Price (USD)
1+
$1.27000
45+
$1.05356
135+
$0.96578
540+
$0.79020
1,035+
$0.70240
5,040+
$0.61460
10,035+
$0.58387
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the TSM-105-01-T-DV-P rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
44914-7403
Sullins Connector Solutions
GRPB482VWVN-RC
Samtec Inc.

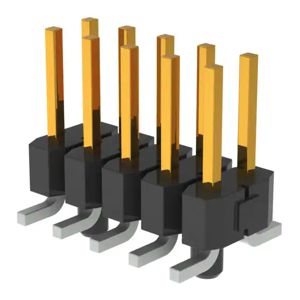

TSM-105-01-L-DV-A-P
Samtec Inc.

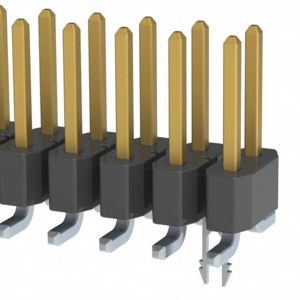

TSM-125-01-SM-DV-LC
Samtec Inc.

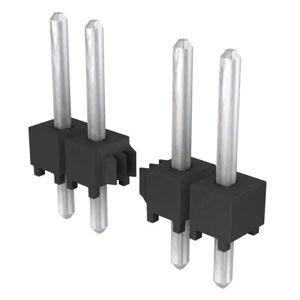

TSW-130-23-T-S
Preci-Dip

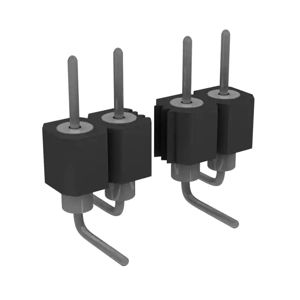

350-80-157-00-106101
Samtec Inc.

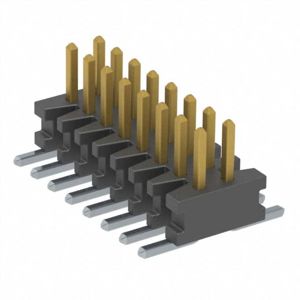

FTMH-108-02-F-DV-P
Preci-Dip

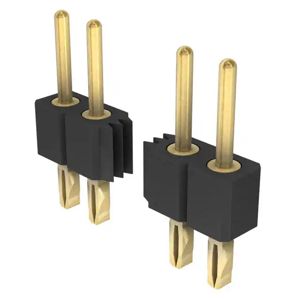

800-10-017-65-001101
