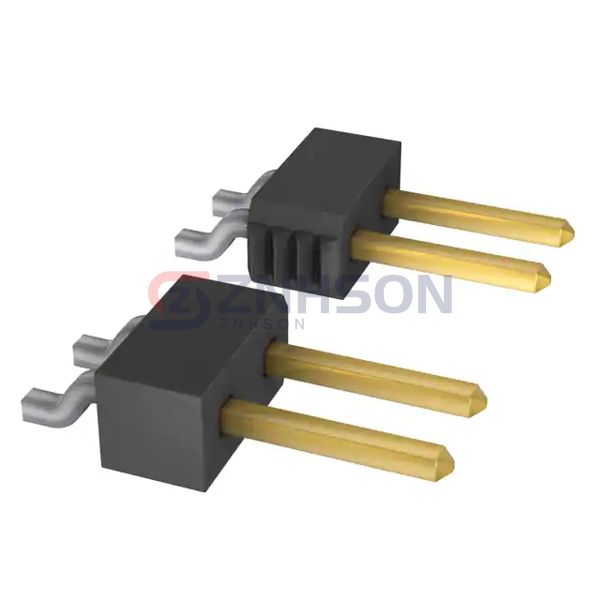

TSM-107-01-L-SH
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 7POS 2.54MM
$1.93
Available to order
Reference Price (USD)
1+
$1.19000
10+
$1.04300
100+
$0.89980
500+
$0.73620
1,000+
$0.65440
5,000+
$0.57260
10,000+
$0.54397
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the TSM-107-01-L-SH rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the TSM-107-01-L-SH meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.120" (3.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Harwin Inc.
G125-MV21205L0P
CNC Tech
3010-40-002-12-00
Molex
0702800441
Sullins Connector Solutions
PBC16DBAN
TE Connectivity Deutsch Connectors
1-776280-1
Harwin Inc.

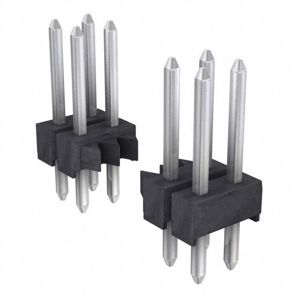

M20-9761246
Samtec Inc.

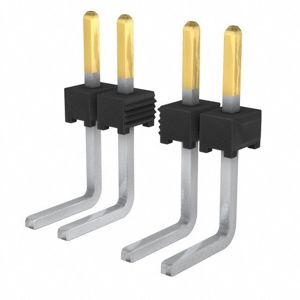

TMM-116-01-S-S-RA
