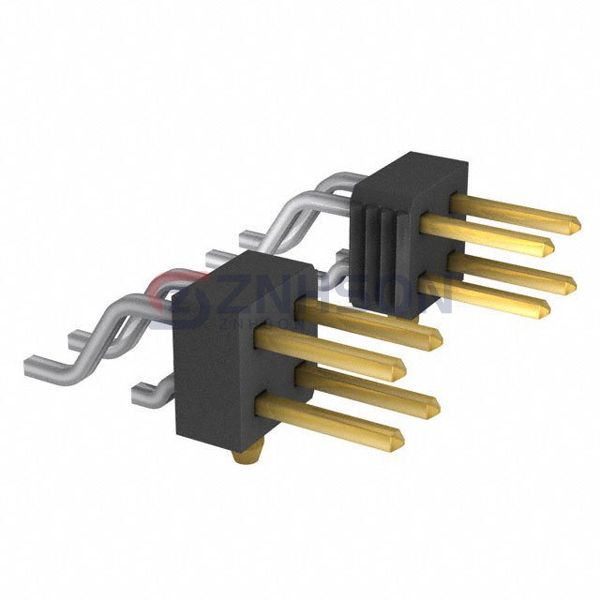

TSM-107-01-S-DH-A-P-TR
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 14POS 2.54MM
$5.96
Available to order
Reference Price (USD)
175+
$3.28000
350+
$2.87000
525+
$2.78800
875+
$2.54200
1,225+
$2.37800
1,750+
$2.29600
4,375+
$2.21400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the TSM-107-01-S-DH-A-P-TR rectangular connector header from Samtec Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the TSM-107-01-S-DH-A-P-TR is perfect for automotive, industrial, and consumer electronics. Samtec Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
0026488247
Harwin Inc.
M80-8542642
JST Sales America Inc.
B11B-PH-SM4-TBT(LF)(SN)
Würth Elektronik
61302211021
TE Connectivity AMP Connectors
5102161-7
Molex
1053122216
Samtec Inc.
TSM-110-01-T-DV-P-TR
Amphenol ICC (FCI)
77311-118R08LF
Molex

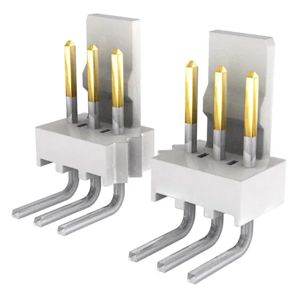

0022124152
