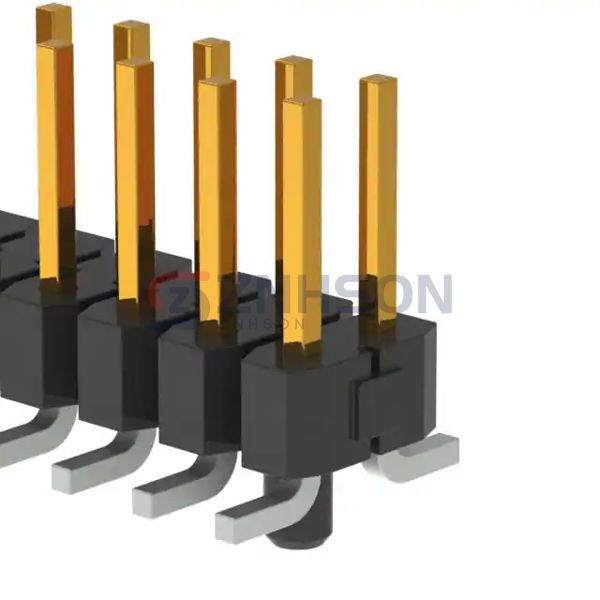

TSM-110-01-L-DV-A-P
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 20POS 2.54MM
$4.78
Available to order
Reference Price (USD)
1+
$4.78000
500+
$4.7322
1000+
$4.6844
1500+
$4.6366
2000+
$4.5888
2500+
$4.541
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM-110-01-L-DV-A-P male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
09-65-2118
Hirose Electric Co Ltd
DF13B-12P-1.25V(50)
EDAC Inc.
140-503-415-100
Amphenol ICC (FCI)
77313-424-16LF
Samtec Inc.
MTMM-106-09-T-D-090
Sullins Connector Solutions
PBC27DFEN

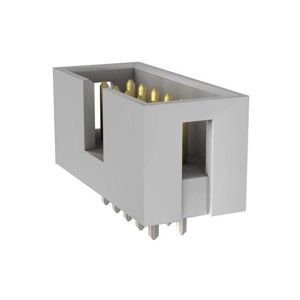

Assmann WSW Components
AWH 10G-0202-T

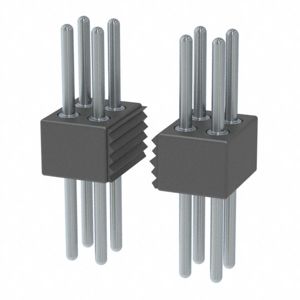

Mill-Max Manufacturing Corp.
