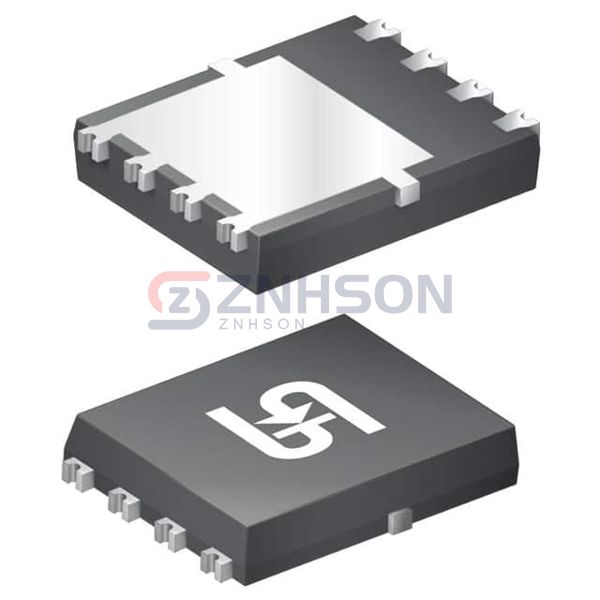

TSM019NH04LCR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
40V, 100A, SINGLE N-CHANNEL POWE
$6.60
Available to order
Reference Price (USD)
1+
$6.60000
500+
$6.534
1000+
$6.468
1500+
$6.402
2000+
$6.336
2500+
$6.27
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the TSM019NH04LCR RLG single MOSFET from Taiwan Semiconductor Corporation. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Taiwan Semiconductor Corporation's TSM019NH04LCR RLG for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 35A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.9mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 104 nC @ 10 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 6282 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 150W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFNU (5x6)
- Package / Case: 8-PowerTDFN
