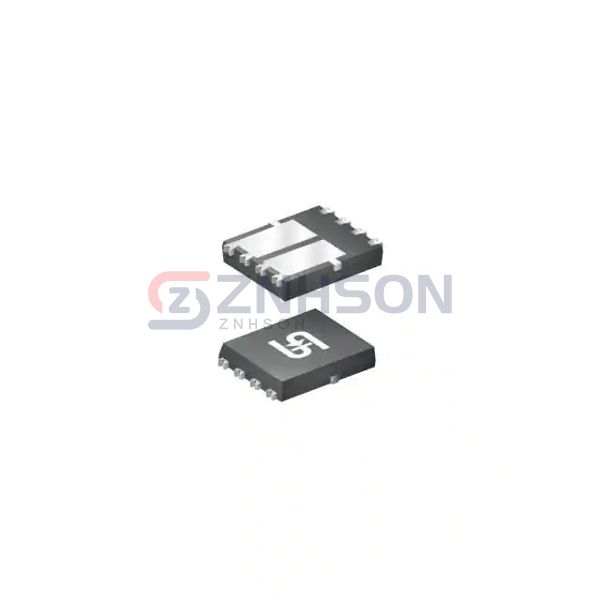

TSM032NH04CR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
40V, 81A, SINGLE N-CHANNEL POWER
$4.01
Available to order
Reference Price (USD)
1+
$4.01000
500+
$3.9699
1000+
$3.9298
1500+
$3.8897
2000+
$3.8496
2500+
$3.8095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM032NH04CR RLG from Taiwan Semiconductor Corporation sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Taiwan Semiconductor Corporation's TSM032NH04CR RLG for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 25A (Ta), 81A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 7V, 10V
- Rds On (Max) @ Id, Vgs: 3.2mOhm @ 40A, 10V
- Vgs(th) (Max) @ Id: 3.6V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 45 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2896 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 115W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFNU (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Infineon Technologies
IAUS240N08S5N019ATMA1
Infineon Technologies
IRFB4228PBF
IXYS
IXTK60N50L2
Texas Instruments
CSD13385F5
Wolfspeed, Inc.

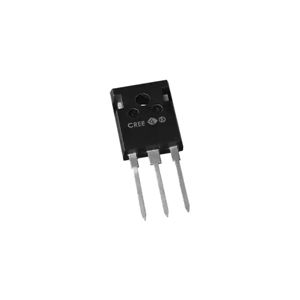

C3M0045065D
Alpha & Omega Semiconductor Inc.
AON1606
Texas Instruments

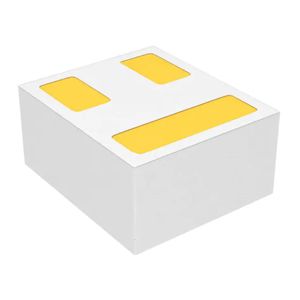

CSD23280F3
Renesas Electronics America Inc

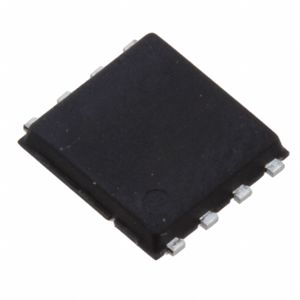

UPA2766T1A-E2-AY
