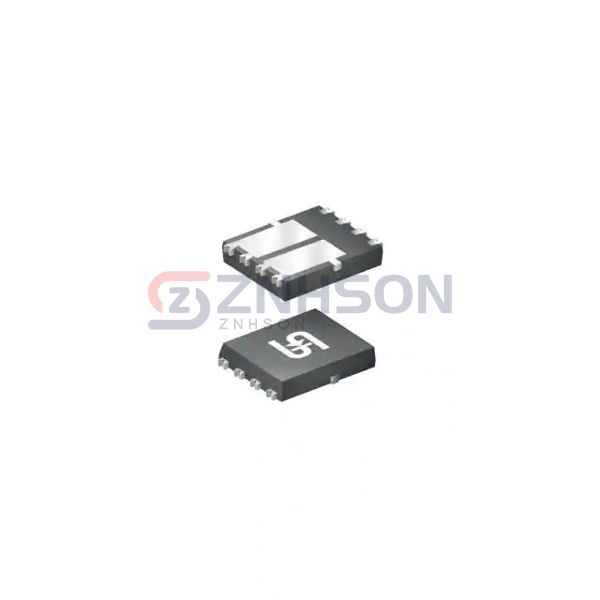

TSM076NH04LDCR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
40V, 34A, DUAL N-CHANNEL POWER M
$2.64
Available to order
Reference Price (USD)
1+
$2.64000
500+
$2.6136
1000+
$2.5872
1500+
$2.5608
2000+
$2.5344
2500+
$2.508
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with the TSM076NH04LDCR RLG, a premium Transistors - FETs, MOSFETs - Arrays product from Taiwan Semiconductor Corporation. This Discrete Semiconductor Products component is designed for optimal power handling and efficiency, featuring advanced technology to reduce switching losses. Suitable for applications such as DC-DC converters, audio amplifiers, and robotics, the TSM076NH04LDCR RLG delivers consistent and reliable operation. Taiwan Semiconductor Corporation's dedication to excellence ensures this MOSFET array meets the highest industry standards.
Specifications
- Product Status: Active
- FET Type: 2 N-Channel (Dual)
- FET Feature: Standard
- Drain to Source Voltage (Vdss): 40V
- Current - Continuous Drain (Id) @ 25°C: 14A (Ta), 34A (Tc)
- Rds On (Max) @ Id, Vgs: 7.6mOhm @ 17A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 22.4nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds: 1344pF @ 25V
- Power - Max: 55.6W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-PowerTDFN
- Supplier Device Package: 8-PDFNU (5x6)
Related Products
Vishay Siliconix
SQJB40EP-T1_BE3
Vishay Siliconix
SIZ320DT-T1-GE3
Renesas Electronics America Inc
FS30ASJ-06F#B00
onsemi
FDC6420C
onsemi
FDS4897AC
Rohm Semiconductor
SH8J62TB1
Rohm Semiconductor
UM6K1NTN
Diodes Incorporated
DMHC4035LSDQ-13
Diodes Incorporated

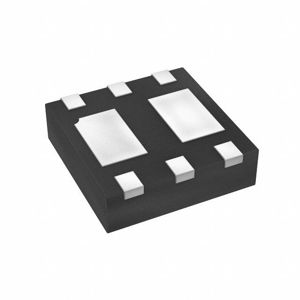

DMC2025UFDB-13
