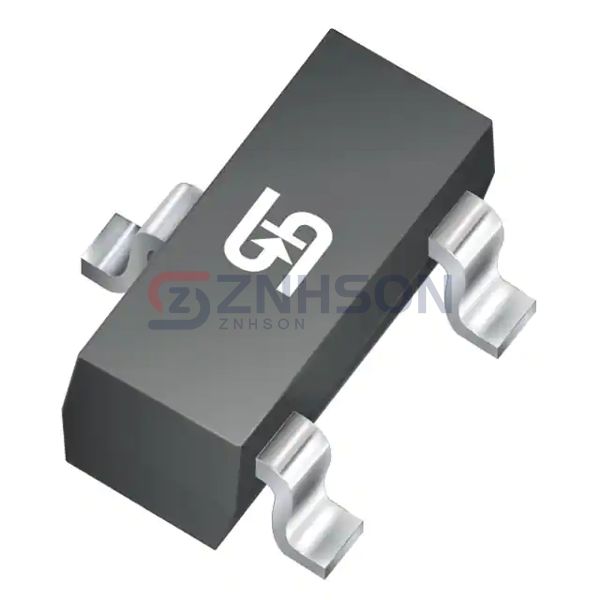

TSM260P02CX RFG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
-20V, -6.5A, SINGLE P-CHANNEL PO
$1.21
Available to order
Reference Price (USD)
1+
$1.21000
500+
$1.1979
1000+
$1.1858
1500+
$1.1737
2000+
$1.1616
2500+
$1.1495
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM260P02CX RFG from Taiwan Semiconductor Corporation redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the TSM260P02CX RFG offers the precision and reliability you need. Trust Taiwan Semiconductor Corporation to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 6.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 26mOhm @ 5A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 19.5 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 1670 pF @ 15 V
- FET Feature: Standard
- Power Dissipation (Max): 1.56W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23
- Package / Case: -
Related Products
Vishay Siliconix
SQ3426EV-T1_GE3
STMicroelectronics
STP40NF10L
Sanken
GKI07113
Vishay Siliconix
SIHD3N50DT5-GE3
Vishay Siliconix
SQM50034E_GE3
onsemi

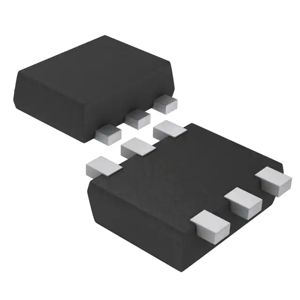

MCH6421-TL-W
STMicroelectronics
STP80NF55-06
Vishay Siliconix

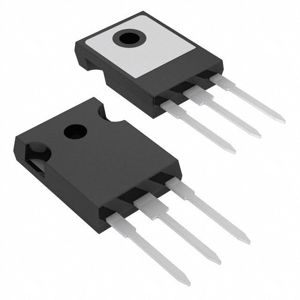

IRFPE50PBF
