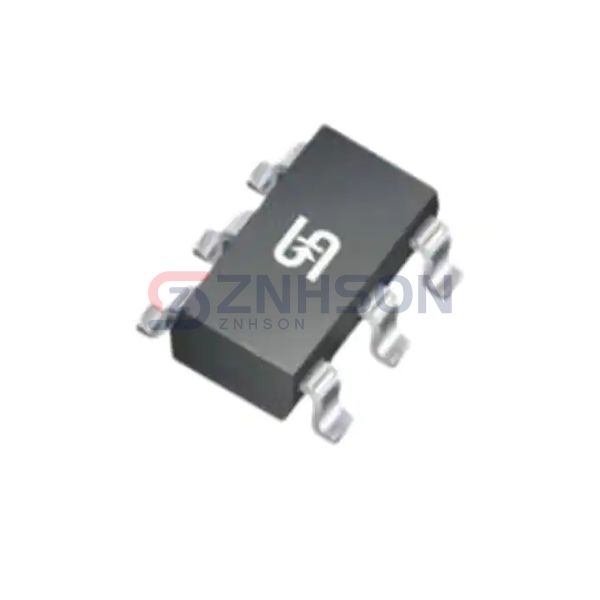

TSM3446CX6 RFG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CHANNEL 20V 5.3A SOT26
$0.91
Available to order
Reference Price (USD)
3,000+
$0.13250
6,000+
$0.12447
15,000+
$0.11644
30,000+
$0.11242
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the TSM3446CX6 RFG by Taiwan Semiconductor Corporation, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the TSM3446CX6 RFG is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 5.3A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 33mOhm @ 5.3A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 8.8 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 700 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-26
- Package / Case: SOT-23-6
