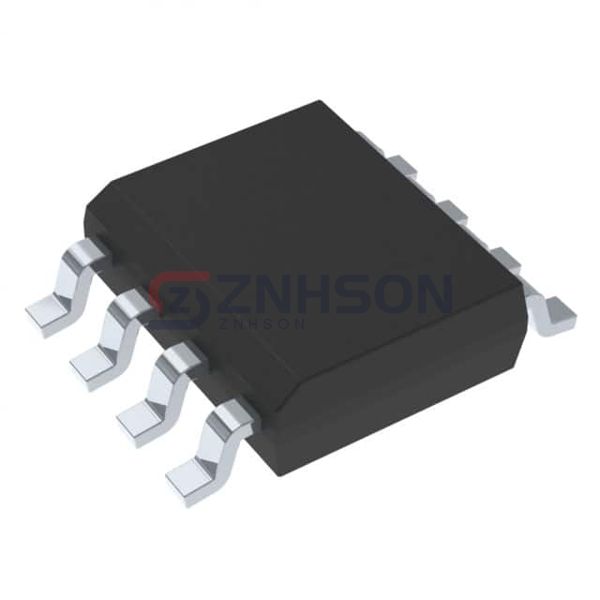

TSM650N15CS RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CHANNEL 150V 9A 8SOP
$5.25
Available to order
Reference Price (USD)
2,500+
$0.47138
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the TSM650N15CS RLG by Taiwan Semiconductor Corporation, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the TSM650N15CS RLG is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 150 V
- Current - Continuous Drain (Id) @ 25°C: 9A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 65mOhm @ 4A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 37 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1783 pF @ 75 V
- FET Feature: -
- Power Dissipation (Max): 12.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOP
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
Related Products
Harris Corporation
RFP6P10
onsemi
NDD03N50ZT4G
Vishay Siliconix
IRFR224PBF
Panjit International Inc.
PJE8405_R1_00001
Vishay Siliconix
IRF740ASPBF
Fairchild Semiconductor
FQI5N80TU
Diotec Semiconductor
MMFTP3401
onsemi

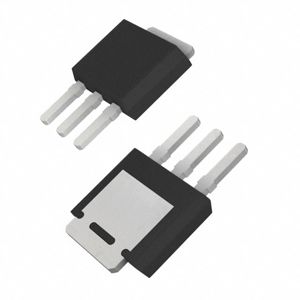

NTD4806NA-1G
Microchip Technology

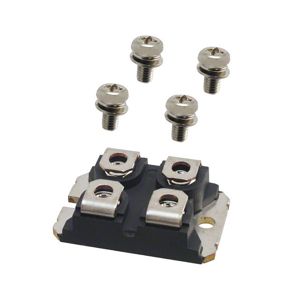

APT60M75JLL
