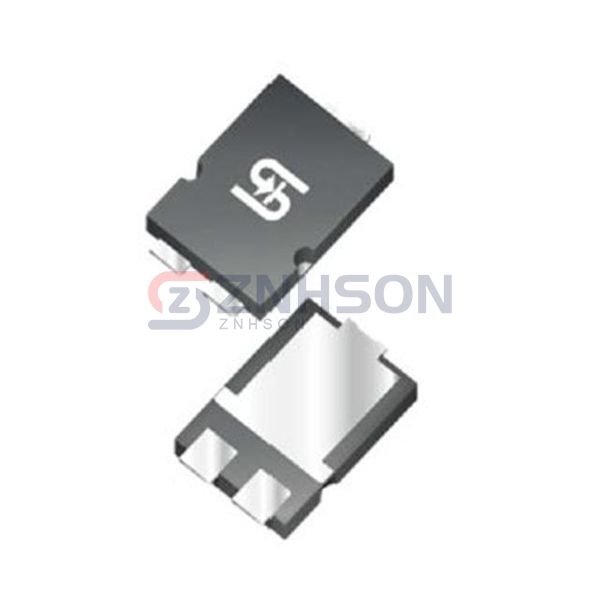

TSPB5H120S S1G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 120V 5A SMPC4.0
$1.09
Available to order
Reference Price (USD)
1+
$1.09000
500+
$1.0791
1000+
$1.0682
1500+
$1.0573
2000+
$1.0464
2500+
$1.0355
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with the TSPB5H120S S1G single rectifier diode by Taiwan Semiconductor Corporation. As a vital component in the Discrete Semiconductor Products range, this diode offers superior rectification with minimal power loss. Its high-temperature tolerance and fast switching make it ideal for use in electric vehicles, industrial automation, and renewable energy systems. The TSPB5H120S S1G is also a preferred choice for consumer electronics, including TVs and audio equipment, where efficiency and reliability are paramount. Choose Taiwan Semiconductor Corporation's TSPB5H120S S1G for advanced semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 740 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 150 µA @ 120 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: SMPC4.0
- Operating Temperature - Junction: -55°C ~ 150°C
