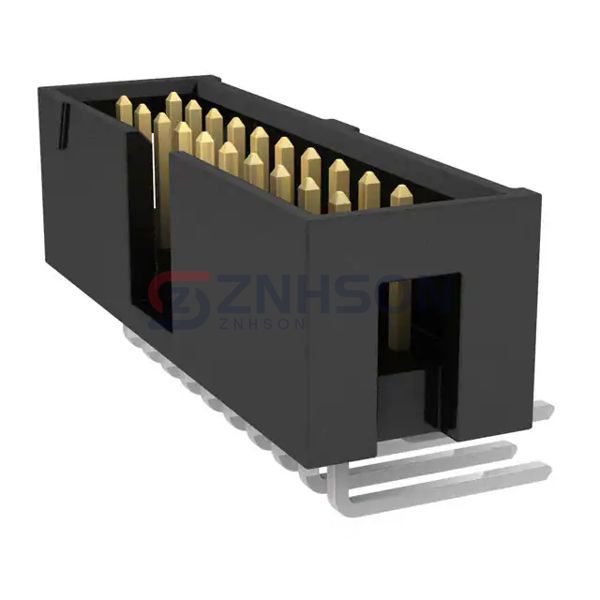

TSS-110-04-L-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 20POS 2.54MM
$4.78
Available to order
Reference Price (USD)
1+
$2.73000
10+
$2.61600
100+
$2.18000
500+
$1.85300
1,000+
$1.58050
5,000+
$1.41700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the TSS-110-04-L-D-RA rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the TSS-110-04-L-D-RA ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.365" (9.27mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
850-80-035-40-001101
Samtec Inc.
MMT-127-01-L-DH-P
Preci-Dip
800-10-010-10-002101
Samtec Inc.
TSW-117-08-S-D-RA
Harwin Inc.
M80-7711622
Mill-Max Manufacturing Corp.
852-90-022-30-001000
CNC Tech

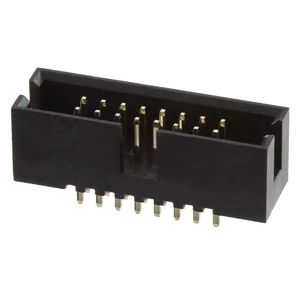

3221-16-0100-00
Samtec Inc.

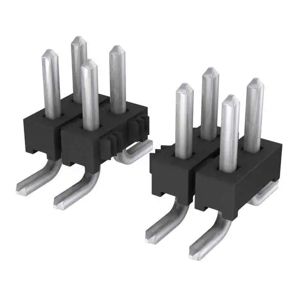

TMM-108-01-TM-D-SM
Hirose Electric Co Ltd

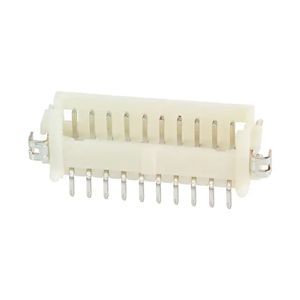

DF13-10P-1.25H(21)
