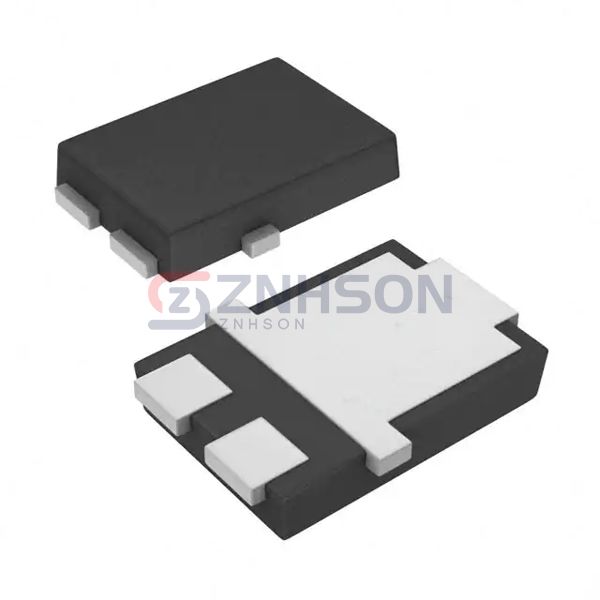

TSUP15M45SH S1G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
15A, 45V, SCHOTTKY RECTIFIER
$2.19
Available to order
Reference Price (USD)
1+
$2.19000
500+
$2.1681
1000+
$2.1462
1500+
$2.1243
2000+
$2.1024
2500+
$2.0805
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSUP15M45SH S1G from Taiwan Semiconductor Corporation is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Taiwan Semiconductor Corporation's dedication to quality means the TSUP15M45SH S1G meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 45 V
- Current - Average Rectified (Io): 15A (DC)
- Voltage - Forward (Vf) (Max) @ If: 600 mV @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 350 µA @ 45 V
- Capacitance @ Vr, F: 1803pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: SMPC4.6U
- Operating Temperature - Junction: -55°C ~ 175°C
