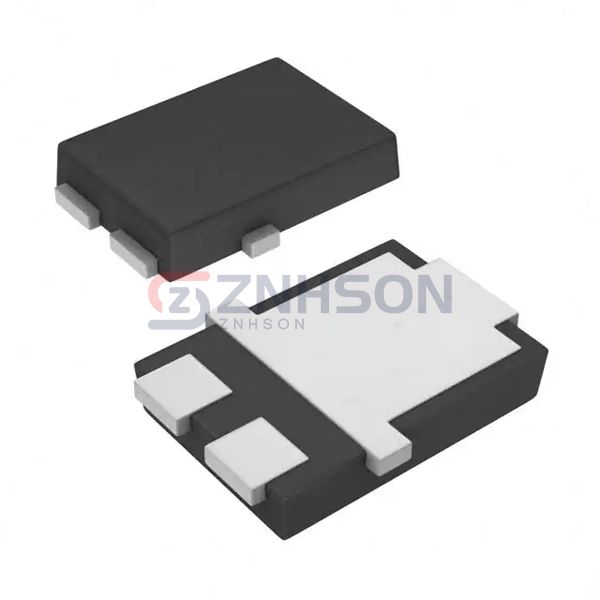

TSUP5M60SH S1G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
5A, 60V, SCHOTTKY RECTIFIER
$0.65
Available to order
Reference Price (USD)
1+
$0.65250
500+
$0.645975
1000+
$0.63945
1500+
$0.632925
2000+
$0.6264
2500+
$0.619875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSUP5M60SH S1G from Taiwan Semiconductor Corporation is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Taiwan Semiconductor Corporation's TSUP5M60SH S1G for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 5A (DC)
- Voltage - Forward (Vf) (Max) @ If: 640 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 200 µA @ 60 V
- Capacitance @ Vr, F: 346pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: SMPC4.6U
- Operating Temperature - Junction: -55°C ~ 175°C
