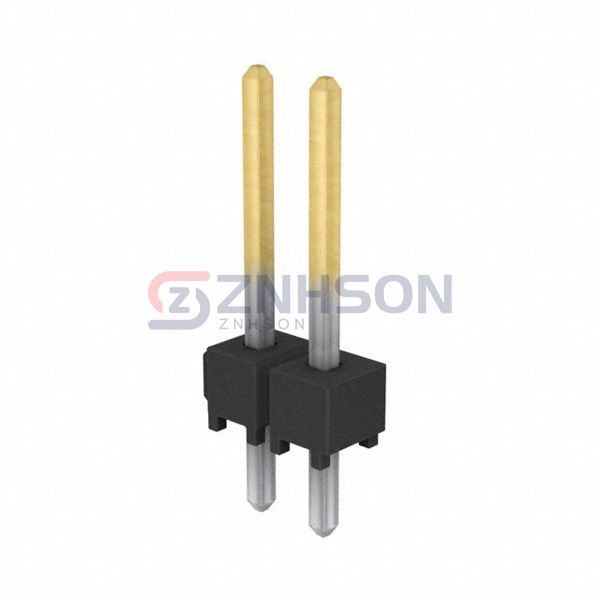

TSW-102-14-S-S
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 2POS 2.54MM
$0.37
Available to order
Reference Price (USD)
1+
$0.34000
10+
$0.32100
25+
$0.27520
50+
$0.23380
100+
$0.22460
250+
$0.20168
500+
$0.19252
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the TSW-102-14-S-S rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the TSW-102-14-S-S meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.530" (13.46mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-125-02-LM-D
Samtec Inc.
TSW-105-22-G-D-RA
Preci-Dip
830-80-030-40-001101
Samtec Inc.
FTSH-112-01-L-DH
Samtec Inc.
TMM-103-04-T-S
Preci-Dip

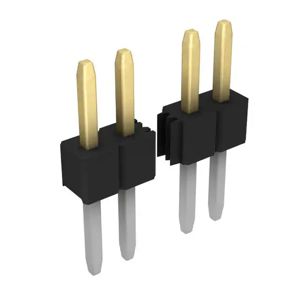

890-18-027-10-002101
Samtec Inc.

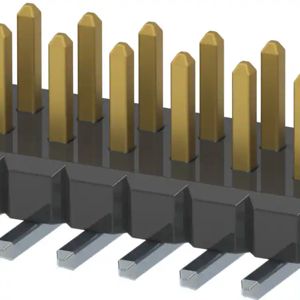

FTM-133-03-F-DV
Samtec Inc.

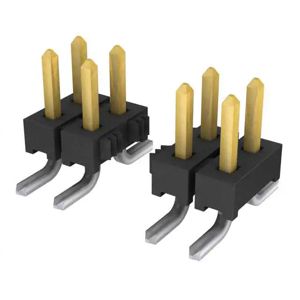

TMM-117-01-S-D-SM-P
