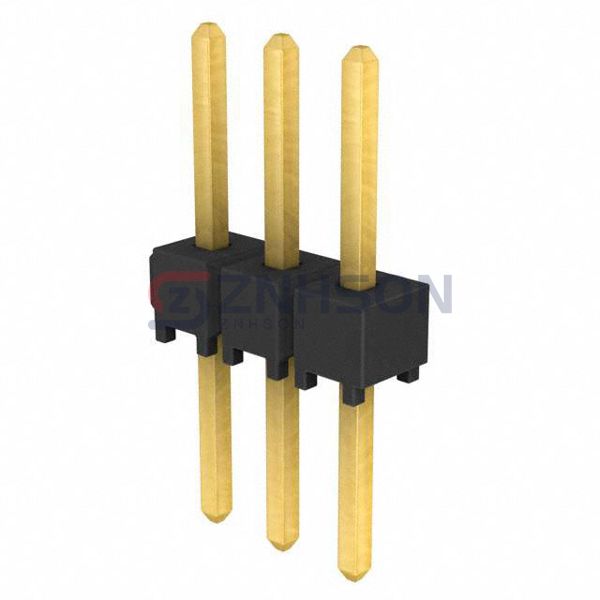

TSW-103-26-G-S

Samtec Inc.

Manufacturer

Samtec Inc.

Description:

CONN HEADER VERT 3POS 2.54MM

Datasheet:

TSW-103-26-G-S Datasheet

$0.52

Available to order

Reference Price (USD)

$0.47000

10+

$0.44300

25+

$0.39840

50+

$0.35420

100+

$0.33950

250+

$0.30996

500+

$0.29520

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TSW-103-26-G-S by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the TSW-103-26-G-S supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 3
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.230" (5.84mm)
Contact Length - Post: 0.126" (3.20mm)
Overall Contact Length: 0.456" (11.58mm)
Insulation Height: 0.100" (2.54mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Material: Phosphor Bronze
Insulation Material: Polybutylene Terephthalate (PBT)
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): -
Voltage Rating: -
