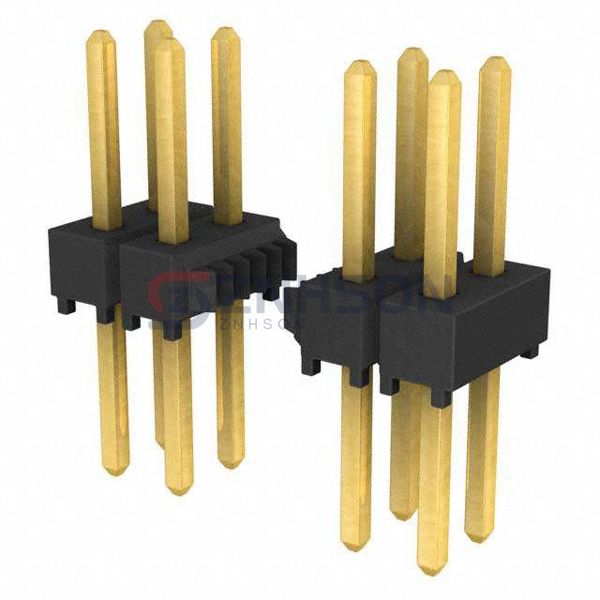

TSW-111-23-L-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 22POS 2.54MM
$2.97
Available to order
Reference Price (USD)
1+
$2.97000
500+
$2.9403
1000+
$2.9106
1500+
$2.8809
2000+
$2.8512
2500+
$2.8215
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-111-23-L-D by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the TSW-111-23-L-D supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.115" (2.92mm)
- Overall Contact Length: 0.445" (11.30mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
0010081069
Samtec Inc.
TMM-105-05-L-D-SM
Preci-Dip
852-10-018-30-002101
Samtec Inc.

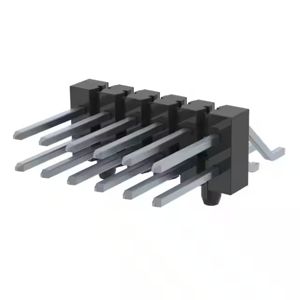

TSM-106-02-T-DH-A-K-TR
TE Connectivity AMP Connectors

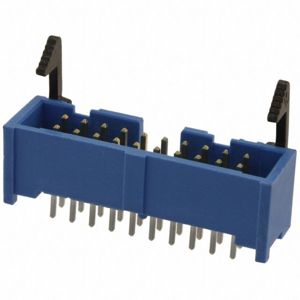

2-1761608-7
JST Sales America Inc.

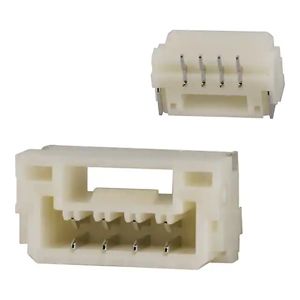

BM04B-GHS-TBT(LF)(SN)(N)
TE Connectivity AMP Connectors

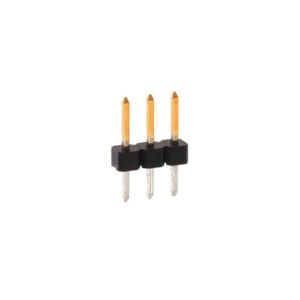

2355182-3
Samtec Inc.

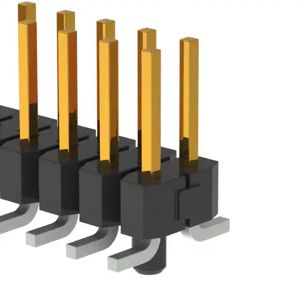

TSM-117-01-F-DV-A
