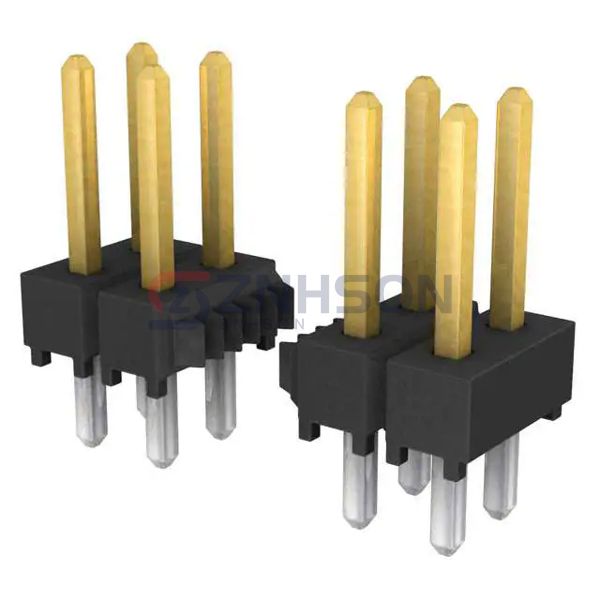

TSW-112-07-F-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 24POS 2.54MM
$2.62
Available to order
Reference Price (USD)
1+
$1.62000
10+
$1.47000
100+
$1.26000
500+
$1.05000
1,000+
$0.90000
5,000+
$0.79800
10,000+
$0.78000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the TSW-112-07-F-D rectangular connector header from Samtec Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the TSW-112-07-F-D is perfect for automotive, industrial, and consumer electronics. Samtec Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: 0.430" (10.92mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
963357-3
Samtec Inc.
TSW-108-14-G-S
Amphenol ICC (FCI)
77311-132-20LF
Samtec Inc.
TSM-106-01-FM-SV-P
Molex
0022045084
Harwin Inc.
B5743-234-M-T-3
Amphenol ICC (FCI)
76350-304-72LF
Samtec Inc.
FTSH-103-04-F-DH

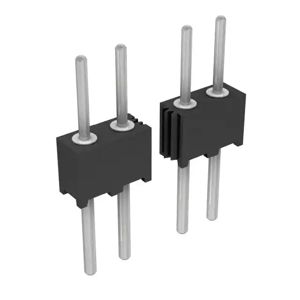

Preci-Dip
