TSW-112-08-S-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 24POS 2.54MM
$3.31
Available to order
Reference Price (USD)
1+
$3.02000
10+
$2.90300
25+
$2.66120
50+
$2.54020
100+
$2.41920
250+
$2.11680
500+
$2.05632
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the TSW-112-08-S-D-RA rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the TSW-112-08-S-D-RA ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.219" (5.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-125-01-S-S-SM-P-TR
Samtec Inc.
MMT-113-02-S-DH
Harwin Inc.

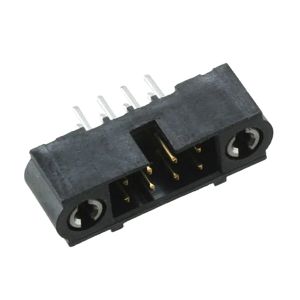

M80-5T10842MC
Preci-Dip

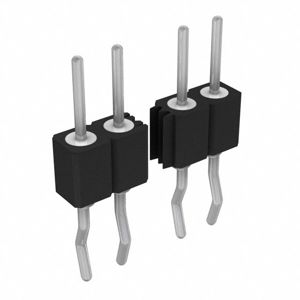

350-80-119-01-666101
Samtec Inc.

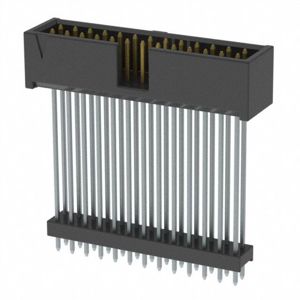

ZSS-113-09-L-D-1315
Molex
0554601372
Sullins Connector Solutions

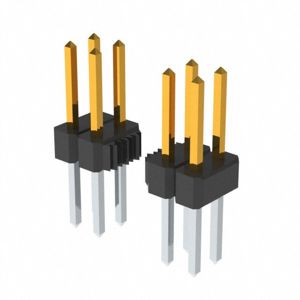

PBC20DABN
Molex

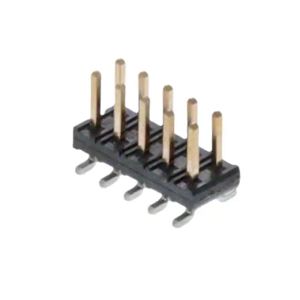

0877591064
