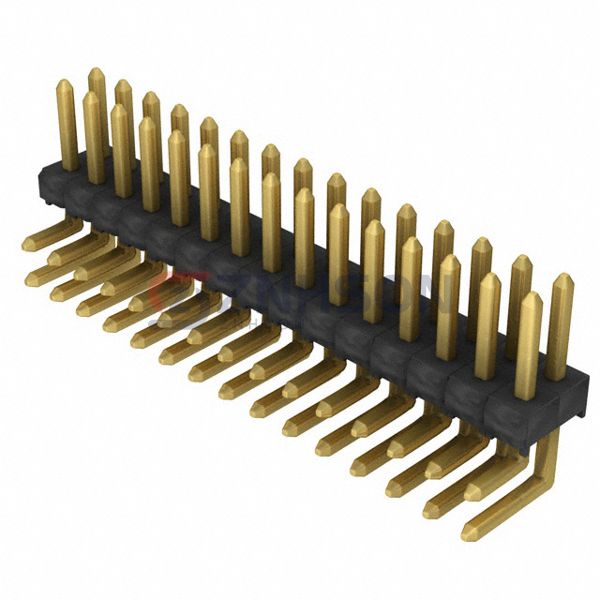

TSW-115-08-G-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 30POS 2.54MM
$3.15
Available to order
Reference Price (USD)
1+
$2.87000
10+
$2.75600
25+
$2.52640
50+
$2.41160
100+
$2.29680
250+
$2.00972
500+
$1.95228
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the TSW-115-08-G-D-RA rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.219" (5.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Sullins Connector Solutions
GBC03DABN-M30
Molex
0901362106
Samtec Inc.
TMM-120-03-L-S
TE Connectivity AMP Connectors
1-353080-2
Molex
0908140808
TE Connectivity AMP Connectors
87227-7
Mill-Max Manufacturing Corp.
800-10-036-61-001000
Amphenol ICC (FCI)

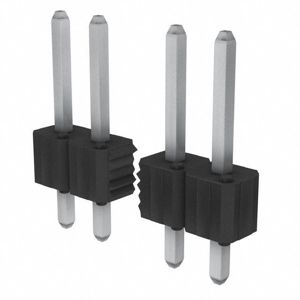

68000-436HLF
