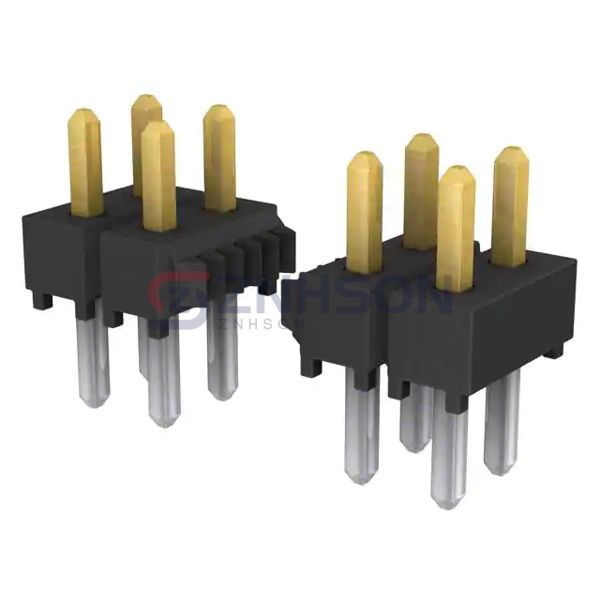

TSW-117-05-S-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 34POS 2.54MM
$7.38
Available to order
Reference Price (USD)
1+
$7.38000
500+
$7.3062
1000+
$7.2324
1500+
$7.1586
2000+
$7.0848
2500+
$7.011
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the TSW-117-05-S-D rectangular connector header from Samtec Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the TSW-117-05-S-D is perfect for automotive, industrial, and consumer electronics. Samtec Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.335" (8.51mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Adam Tech
PH1-07-UA
Samtec Inc.
TSM-106-03-L-SH-P-TR
TE Connectivity AMP Connectors
5499913-4
Mill-Max Manufacturing Corp.
852-40-080-30-001000
Harwin Inc.
M80-5112022
Samtec Inc.
TFM-115-01-F-D-RE1-WT
JST Sales America Inc.
BM09B-XASS-TF(LF)(SN)
TE Connectivity AMP Connectors
1-103670-7
Sullins Connector Solutions

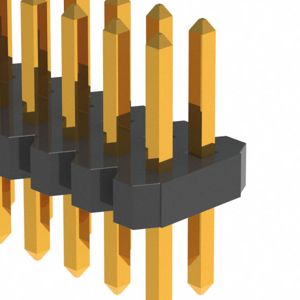

GRPB272VWVN-RC
