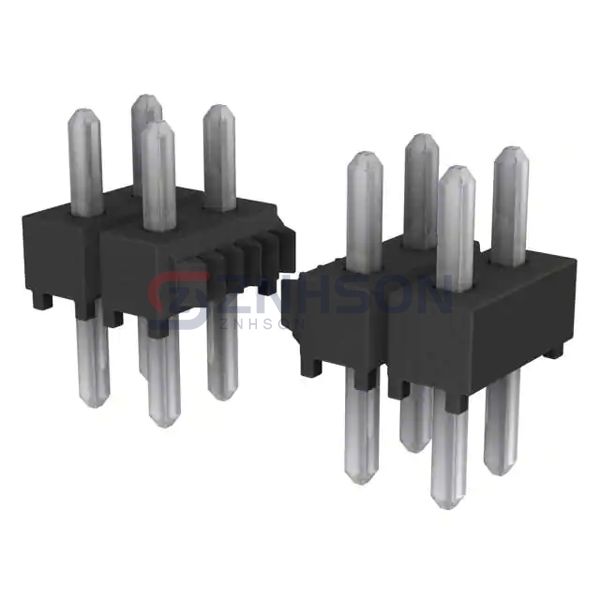

TSW-118-05-T-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 36POS 2.54MM
$2.18
Available to order
Reference Price (USD)
1+
$1.99000
10+
$1.81000
25+
$1.69920
50+
$1.62520
100+
$1.55130
250+
$1.40356
500+
$1.29276
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the TSW-118-05-T-D rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the TSW-118-05-T-D ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 36
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.335" (8.51mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
0022041111
Samtec Inc.
STMM-120-02-G-D
Molex
0026604130
TE Connectivity AMP Connectors
3-292207-3

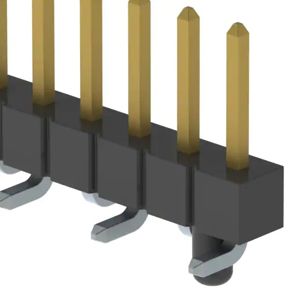

Samtec Inc.
TSM-118-01-F-SV-A

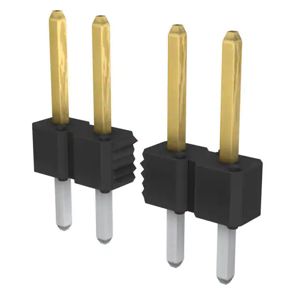

Amphenol ICC (FCI)
77311-102S05LF

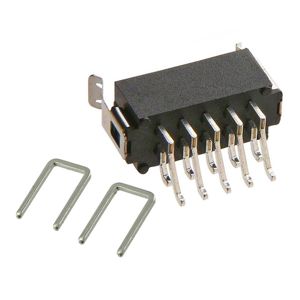

Harwin Inc.
M80-6661242

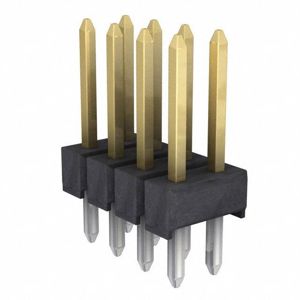

Harwin Inc.
M20-9760442

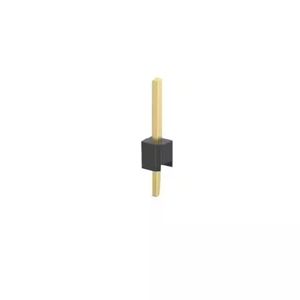

KinnexA
