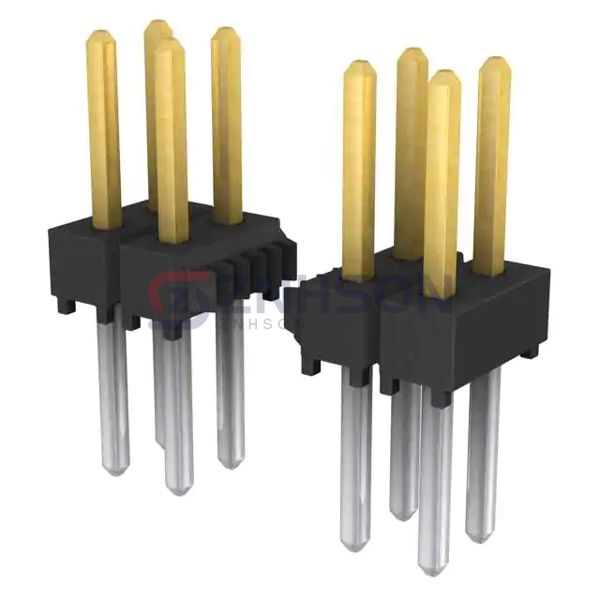

TSW-118-08-S-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 36POS 2.54MM
$7.21
Available to order
Reference Price (USD)
1+
$7.21000
500+
$7.1379
1000+
$7.0658
1500+
$6.9937
2000+
$6.9216
2500+
$6.8495
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-118-08-S-D male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 36
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.200" (5.08mm)
- Overall Contact Length: 0.530" (13.46mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
CNC Tech
3010-20-002-13-00
Samtec Inc.
HTSS-107-01-L-DV
Samtec Inc.
FTS-109-01-L-DV-TR
Amphenol ICC (FCI)
57202-F52-10ALF
TE Connectivity AMP Connectors
1-776200-2
Sullins Connector Solutions

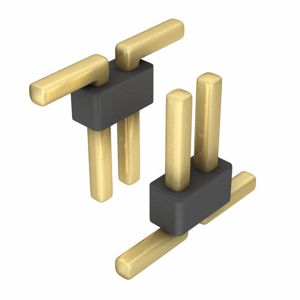

GBC26DFBN-M30
Hirose Electric Co Ltd

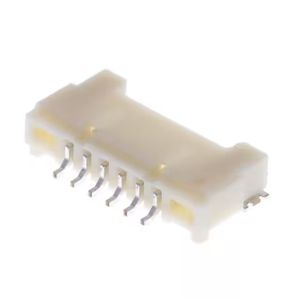

DF14-6P-1.25H(35)
