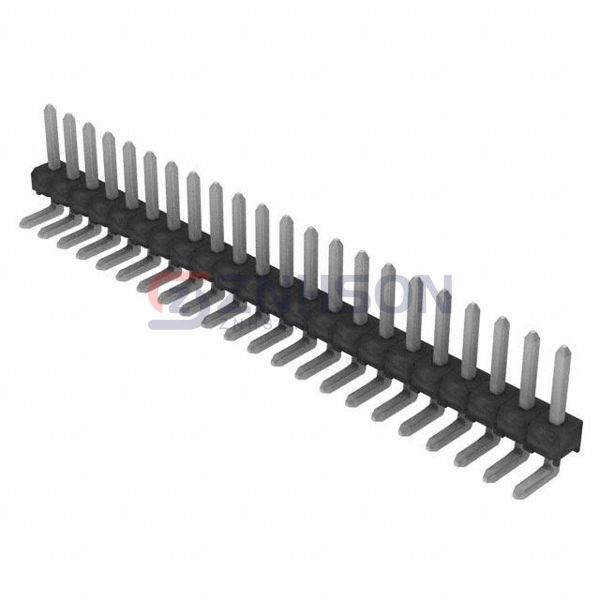

TSW-122-08-T-S-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 22POS 2.54MM
$1.35
Available to order
Reference Price (USD)
1+
$1.32000
10+
$1.16300
25+
$1.09480
50+
$1.04920
100+
$1.00360
250+
$0.91240
500+
$0.82114
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the TSW-122-08-T-S-RA rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the TSW-122-08-T-S-RA ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 22
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.119" (3.02mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
0022102052
Samtec Inc.
FTSH-114-01-F-DV
Molex
0015916142
Samtec Inc.
TSW-121-08-S-S
TE Connectivity AMP Connectors
4-102973-0-36
Samtec Inc.
TSS-105-01-T-D
Samtec Inc.
STMM-112-02-L-D
Preci-Dip
832-80-010-30-001101

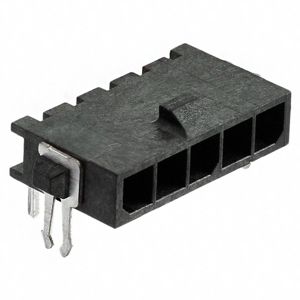

TE Connectivity AMP Connectors
