TSW-125-08-L-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 50POS 2.54MM
$3.95
Available to order
Reference Price (USD)
1+
$3.60000
10+
$3.45600
25+
$3.16800
50+
$3.02400
100+
$2.88000
250+
$2.52000
500+
$2.44800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TSW-125-08-L-D rectangular connector header from Samtec Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the TSW-125-08-L-D adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Samtec Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.200" (5.08mm)
- Overall Contact Length: 0.530" (13.46mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Greenconn
GBEC209-0579B001C1AF
TE Connectivity AMP Connectors
4-103185-0-39
Samtec Inc.
FTMH-110-02-F-DV-A-P-TR

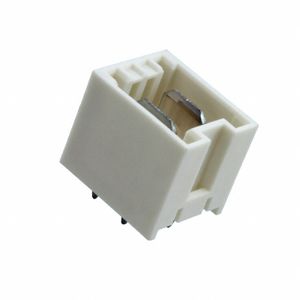

TE Connectivity AMP Connectors
3-1971896-2

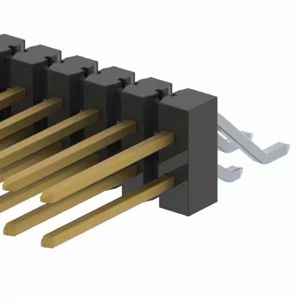

Samtec Inc.
TSM-110-03-S-DH

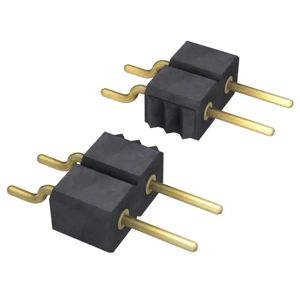

Preci-Dip
830-10-007-40-001101

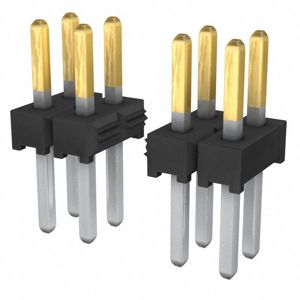

Samtec Inc.
TMM-127-03-S-D

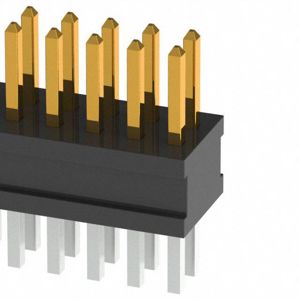

Samtec Inc.
FTSH-111-04-L-D

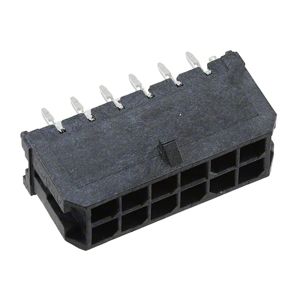

Molex
