TSW-127-14-S-S

Samtec Inc.

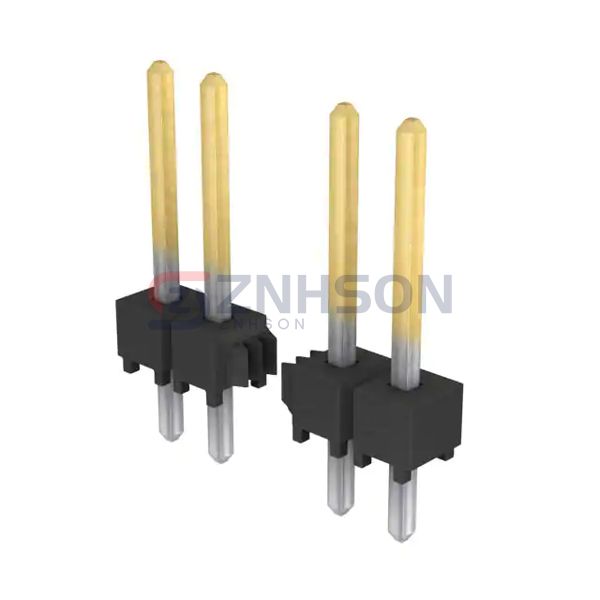

TSW-127-14-S-S Preview
Samtec Inc.
CONN HEADER VERT 27POS 2.54MM
TSW-127-14-S-S Datasheet
$3.39
Available to order
Reference Price (USD)
1+
$3.09000
10+
$2.97000
25+
$2.72280
50+
$2.59920
100+
$2.47540
250+
$2.16596
500+
$2.10406
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 27
  • Number of Rows: 1
  • Row Spacing - Mating: -
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.320" (8.13mm)
  • Contact Length - Post: 0.110" (2.79mm)
  • Overall Contact Length: 0.530" (13.46mm)
  • Insulation Height: 0.100" (2.54mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 30.0µin (0.76µm)
  • Contact Finish - Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Features: -
  • Operating Temperature: -55°C ~ 125°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): -
  • Voltage Rating: -

Related Products

TMM-118-01-T-Q-RA
Samtec Inc.

TMM-118-01-T-Q-RA

TSW-136-07-L-S
Samtec Inc.

TSW-136-07-L-S

TSW-136-05-S-S
Samtec Inc.

TSW-136-05-S-S

0022284340
Molex

0022284340

TS-106-T-A
Samtec Inc.

TS-106-T-A

1-640389-5
TE Connectivity AMP Connectors

1-640389-5

0026503154
Molex

0026503154

FTS-143-04-L-DV
Samtec Inc.

FTS-143-04-L-DV

FTS-149-04-F-DV
Samtec Inc.

FTS-149-04-F-DV

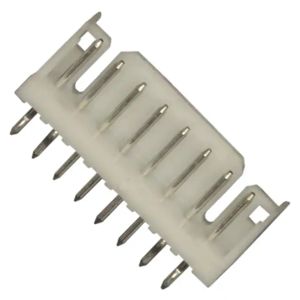

292161-8
