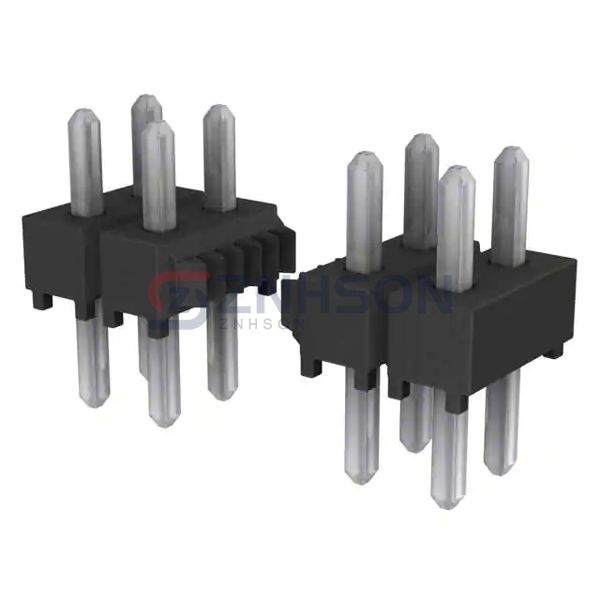

TSW-132-06-T-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 64POS 2.54MM
$5.96
Available to order
Reference Price (USD)
1+
$5.96000
500+
$5.9004
1000+
$5.8408
1500+
$5.7812
2000+
$5.7216
2500+
$5.662
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the TSW-132-06-T-D rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 64
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.095" (2.41mm)
- Overall Contact Length: 0.300" (7.62mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-135-02-L-DH-A
Samtec Inc.
TMM-101-03-S-S
TE Connectivity AMP Connectors
825440-4
Molex
87437-1173
Samtec Inc.
TSM-123-01-F-SV
Sullins Connector Solutions
PEC16SBEN
Preci-Dip

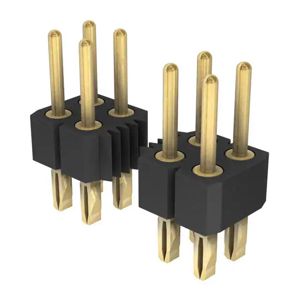

802-10-022-65-001101
Molex

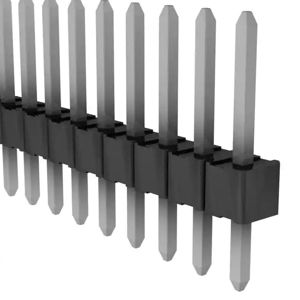

0022284280
Sullins Connector Solutions

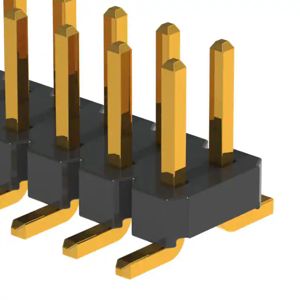

NRPN082MAMS-RC
