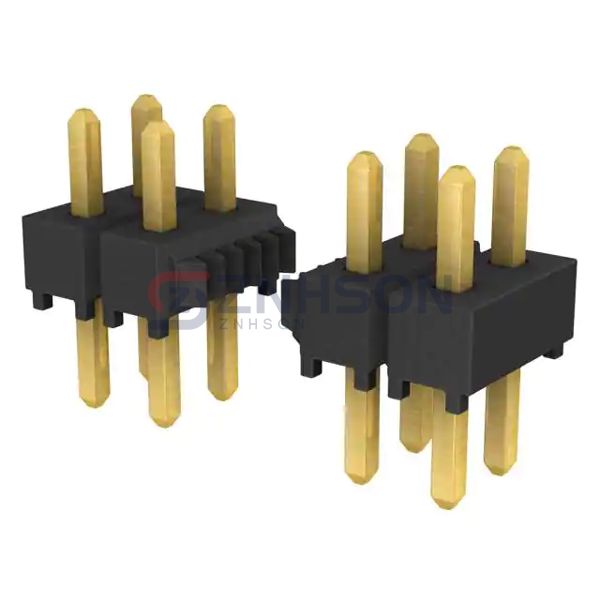

TSW-133-05-G-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 66POS 2.54MM
$6.56
Available to order
Reference Price (USD)
1+
$6.24000
10+
$5.98800
25+
$5.48840
50+
$5.23900
100+
$4.98960
250+
$4.36592
500+
$4.24116
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-133-05-G-D from Samtec Inc. is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the TSW-133-05-G-D offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Samtec Inc. for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 66
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.335" (8.51mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
3M
929710-06-21
TE Connectivity AMP Connectors
4-103185-0-30
Samtec Inc.
TMM-117-01-G-S-RA

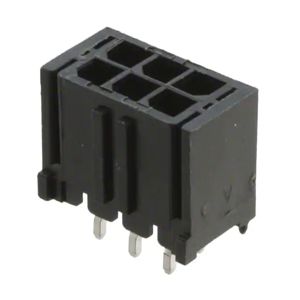

Würth Elektronik
66200621122

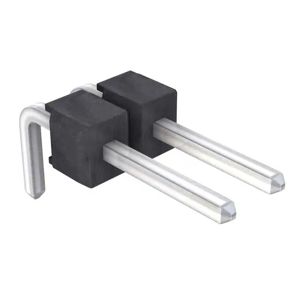

Harwin Inc.
M20-9960246

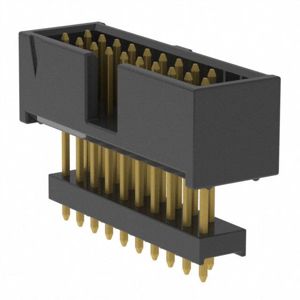

Samtec Inc.
ZSS-110-02-G-D-640-02

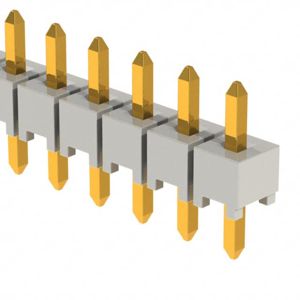

Samtec Inc.
HTSW-122-06-G-S

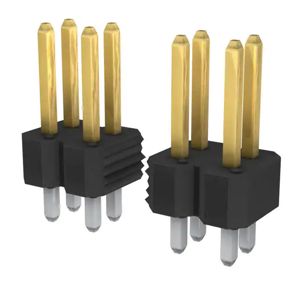

Amphenol ICC (FCI)
77313-101-72LF

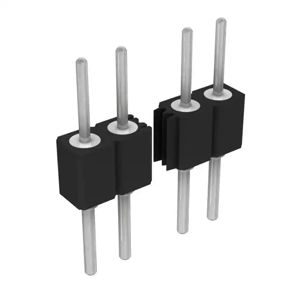

Preci-Dip
