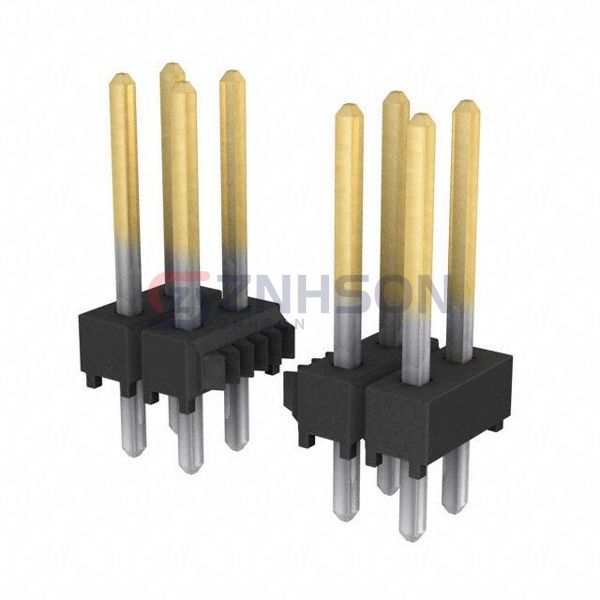

TSW-137-14-S-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 74POS 2.54MM
$8.54
Available to order
Reference Price (USD)
1+
$8.14000
10+
$7.80200
25+
$7.12360
50+
$6.78440
100+
$6.44510
250+
$5.76668
500+
$5.42746
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the TSW-137-14-S-D rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the TSW-137-14-S-D meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 74
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.530" (13.46mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Harwin Inc.
B5743-210-M-L-3
Samtec Inc.
TSM-110-04-T-DV-TR
Sullins Connector Solutions
GBC06SBSN-M89
Samtec Inc.
MMT-125-01-SM-MT
Molex
0436500402
Mill-Max Manufacturing Corp.
850-40-032-10-001000
Molex
5055780271
Sullins Connector Solutions
PEC33SFCN
TE Connectivity AMP Connectors

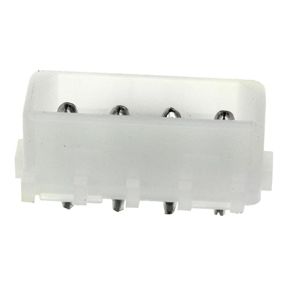

350211-1
