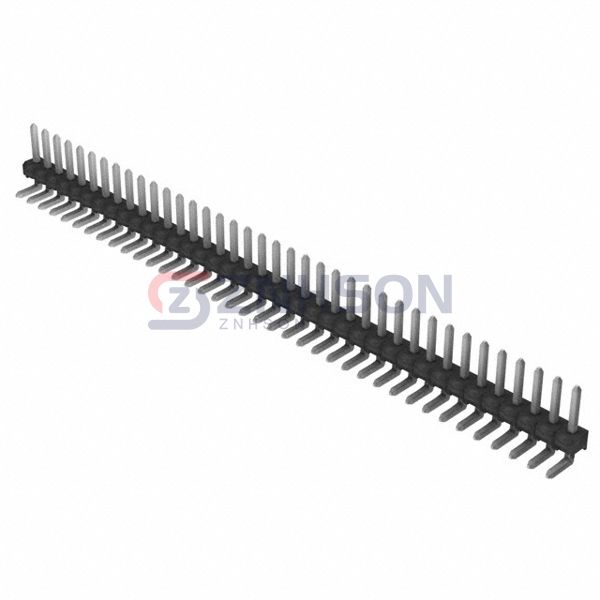

TSW-138-08-T-S-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 38POS 2.54MM
$2.34
Available to order
Reference Price (USD)
1+
$2.13000
10+
$1.93100
25+
$1.81240
50+
$1.73360
100+
$1.65470
250+
$1.49716
500+
$1.37894
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the TSW-138-08-T-S-RA rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the TSW-138-08-T-S-RA ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 38
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.119" (3.02mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Oupiin
2011-2X13TSB
TE Connectivity AMP Connectors
5-147377-5
Samtec Inc.
TD-117-G-A
Molex
44472-0456
Oupiin
2011-2X36G00SN131B
Molex
0430451023
Sullins Connector Solutions
PEC04SGAN

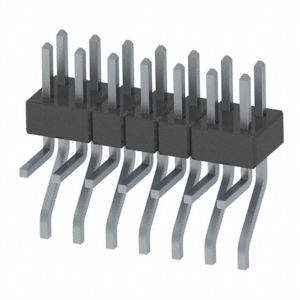

Samtec Inc.
MMT-107-01-T-MT-P

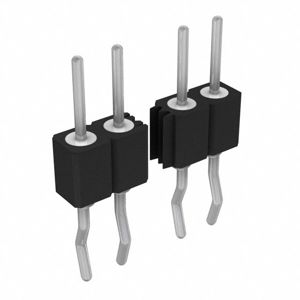

Preci-Dip
