TSW-139-17-G-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 78POS 2.54MM
$8.18
Available to order
Reference Price (USD)
1+
$7.80000
10+
$7.47000
25+
$6.82080
50+
$6.49580
100+
$6.17100
250+
$5.52148
500+
$5.19668
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

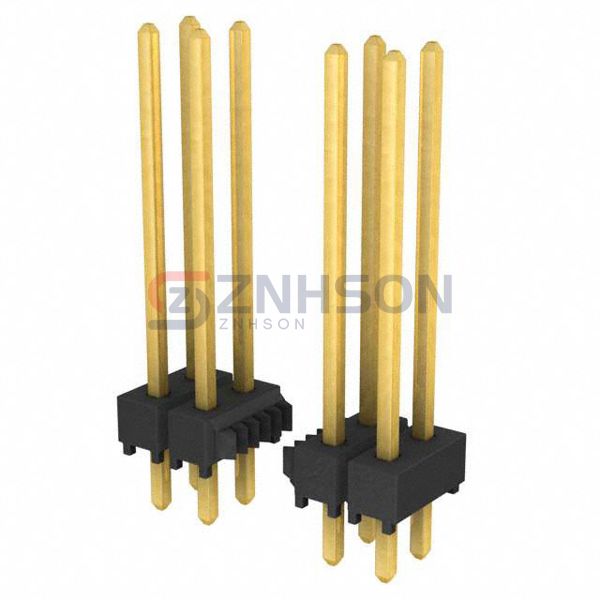

The TSW-139-17-G-D male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 78
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.620" (15.75mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.830" (21.08mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
